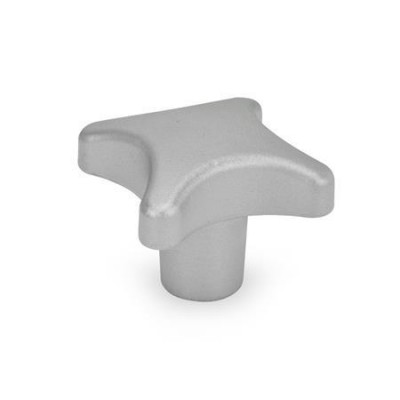

DIN6335 Star Knob Stainless Steel, Aluminium, Cast Iron, Casting Only

Type A - Casting only

Tech Spec:

DIN 6335 Star Knob Stainless Steel, Aluminium, Cast Iron, Casting Only

Star knobs provide a firm grip to easily achieve high torques whilst being comfortable to use. Stainless steel variant is ideal for clean rooms, for example for the food or medical industries. Ster knobs can be plastic coated on request.

Specification

Aluminium AL

Cast iron GG, Fettled and tumbled.

Stainless Steel - Precision casting NI AISI CF-8, matt shot-blasted.

RoHS compliant

Plastic coated on request.

Select / Deselect Visible Columns

Hide	Material	Show
Hide	d1	Show
Hide	d4	Show
Hide	h3	Show
Hide	h4	Show
Hide	Type	Show

PartCode	Material	d1	d4	h3	h4	Type	Mass

DIN6335-GG-32-A	GG	32	12	21	10	A	0.03
DIN6335-NI-32-A	NI	32	12	21	10	A	0.041
DIN6335-GG-40-A	GG	40	14	26	14	A	0.061
DIN6335-AL-40-A	AL	40	14	26	14	A	0.025
DIN6335-NI-40-A	NI	40	14	26	14	A	0.071
DIN6335-GG-50-A	GG	50	18	34	20	A	0.119
DIN6335-AL-50-A	AL	50	18	34	20	A	0.053
DIN6335-NI-50-A	NI	50	18	34	20	A	0.128
DIN6335-GG-63-A	GG	63	20	42	25	A	0.222
DIN6335-AL-63-A	AL	63	20	42	25	A	0.085
DIN6335-NI-63-A	NI	63	20	42	25	A	0.228
DIN6335-GG-80-A	GG	80	25	52	30	A	0.38
DIN6335-AL-80-A	AL	80	25	52	30	A	0.165
DIN6335-GG-100-A	GG	100	32	65	38	A	0.8
