DIN6336 Star Knob, Cast Iron



Type B - with plain through bore, Tol. H7

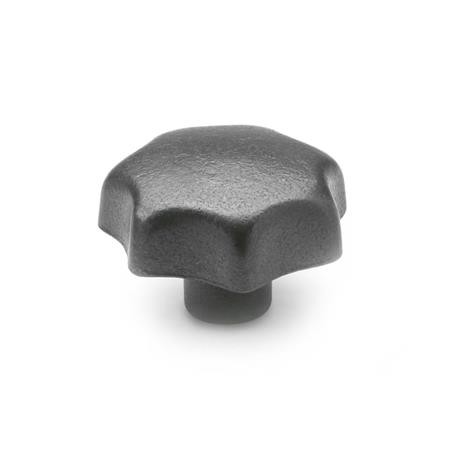

Type C - with plain blind bore, Tol. H7

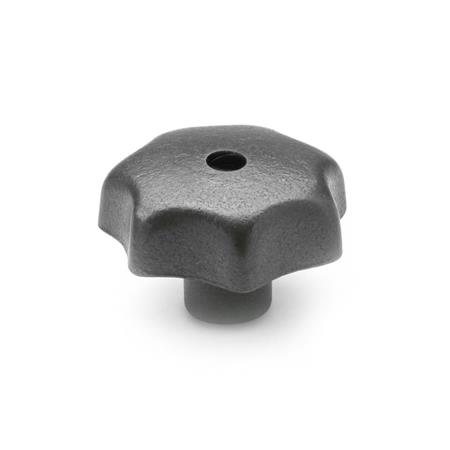

Type D - with threaded through bore

Type E - with threaded blind bore

Select Values to Buy:

Tech Spec:



DIN 6336 Star Knob, Cast Iron

These star knobs have many uses, including clamping applications and machine adjustment. The lobes on these star or hand knobs provide a firm grip to easily achieve high torques whilst being comfortable to use. They are available threaded or plain, and in through or blind bores, and can be plastic coated on request.

Specification

GG Cast Iron, fettled and tumbled.

RoHS compliant.

Plastic coated on request.

Select / Deselect Visible Columns
PartCodeMateriald1d2
Thread
d3
Bore
d4h1 h2
Min.
t1t2Mass

DIN6336-GG-32-M6-DGG32M61220912100.04
DIN6336-GG-32-M6-EGG32M61220912100.034
DIN6336-GG-32-B6-BGG32B61220912100.042
DIN6336-GG-32-B6-CGG32B61220912100.049
DIN6336-GG-40-M8-DGG40M814251215130.069
DIN6336-GG-40-M8-EGG40M814251215130.069
DIN6336-GG-40-B8-BGG40B814251215130.069
DIN6336-GG-40-B8-CGG40B814251215130.067
DIN6336-GG-50-M8-DGG50M818321518160.124
DIN6336-GG-50-M8-EGG50M818321518160.152
DIN6336-GG-50-M10-DGG50M1018321518160.14
DIN6336-GG-50-M10-EGG50M1018321518160.149
DIN6336-GG-50-B8-BGG50B818321518160.133
DIN6336-GG-50-B8-CGG50B818321518160.133
DIN6336-GG-50-B10-BGG50B1018321518160.12
DIN6336-GG-50-B10-CGG50B1018321518160.15
DIN6336-GG-63-M10-DGG63M1020401922200.245
DIN6336-GG-63-M10-EGG63M1020401922200.262
DIN6336-GG-63-M12-DGG63M1220401922200.26
DIN6336-GG-63-M12-EGG63M1220401922200.2
DIN6336-GG-63-B10-BGG63B1020401922200.249
DIN6336-GG-63-B10-CGG63B1020401922200.256
DIN6336-GG-63-B12-BGG63B1220401922200.233
DIN6336-GG-63-B12-CGG63B1220401922200.255
DIN6336-GG-80-M12-DGG80M1225502328200.56
DIN6336-GG-80-M12-EGG80M1225502328200.55
DIN6336-GG-80-M16-DGG80M1625502328200.531
DIN6336-GG-80-M16-EGG80M1625502328200.56
DIN6336-GG-80-B12-BGG80B1225502328200.546
DIN6336-GG-80-B12-CGG80B1225502328200.49
DIN6336-GG-80-B16-BGG80B1625502328200.44
DIN6336-GG-80-B16-CGG80B1625502328200.542
