DIN808 Universal Joint With Friction Bearing
CloseNextPreviousDIN808: Universal Joint - Bore Code: B
Type: DG - Double, Friction Bearing

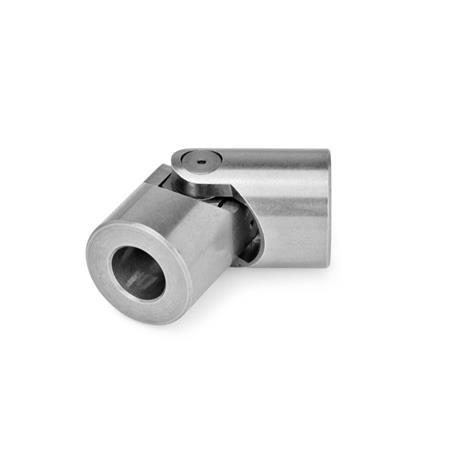

CloseNextPreviousDIN808: Universal Joint - Bore Code: B
Type: EG - Single, Friction Bearing

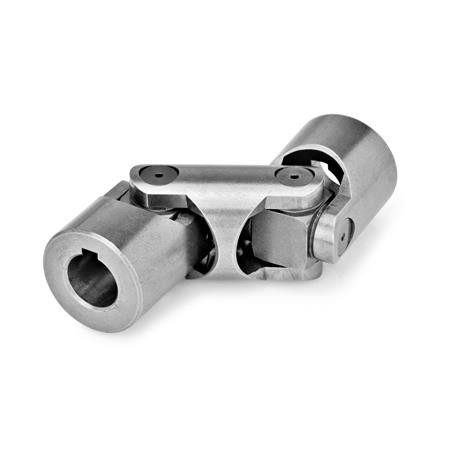

CloseNextPreviousDIN808: Universal Joint - Bore Code: K
Type: DG - Double, Friction Bearing
CloseNextPreviousDIN808: Universal Joint - Bore code: K
Type: EG - Single, Friction Bearing

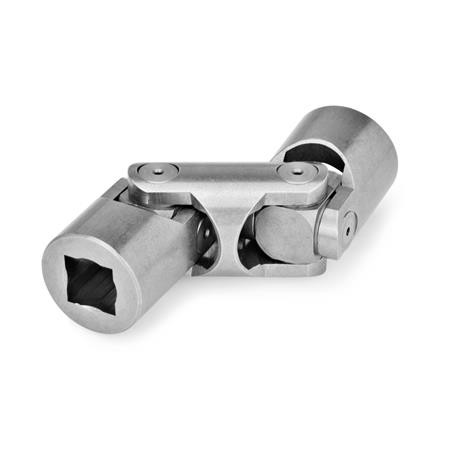

CloseNextPreviousDIN808: Universal Joint - Bore Code: V
Type: DG - Double, Friction Bearing

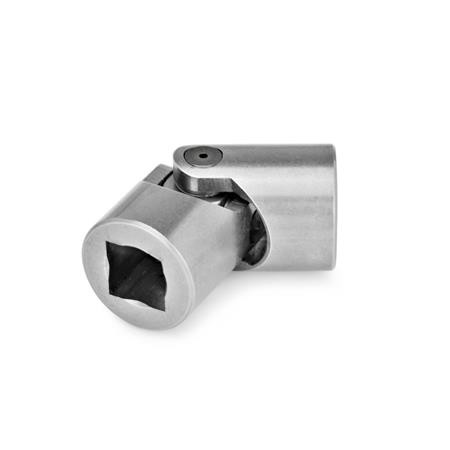

CloseNextPreviousDIN808: Universal Joint - Bore Code: V
Type: EG - Single, Friction Bearing
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type EG - single, friction bearing
Type DG - double, with friction bearing
Bore Code B - without keyway
Bore Code K - with keyway
Bore Code V - with square - available on request - please call for further details.
Product Description
DIN 808 Universal Joint With Friction Bearing.
The permissible r.p.m. of these joints is to a large extent dependent on the type of application such as load, duration, angular disposition as well as lubrication. For over 1000 r.p.m. universal joints with needle bearings should be used.
For continuous use ample lubrication is essential. This is achieved by fitting the joint with a grease filled gaiter GN808.1
Specification
Steel - blank.
Joint bearing areas, pins, bearing sleeves - case hardened.
CAD Viewer
Technical Data
