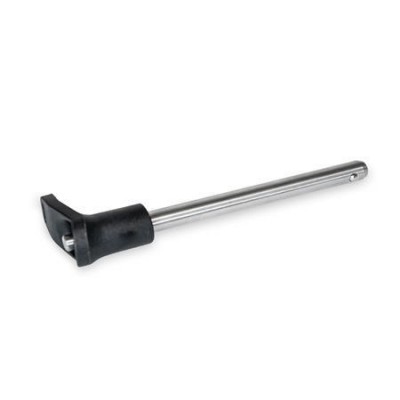

GN113.11 Ball Lock Pin, L handle, Stainless Steel, AISI 303
Stainless Steel-Ball lock pins GN113.11 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.
By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.
The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
Pin - Stainless Steel AISI 303
L-Handle - Plastic (Polyamide PA), black, temperature resistant up to 80 °C
Balls - Stainless Steel AISI 420C
Spring - Stainless Steel, German Material No. 1.4565
Ball chains GN111 & GN111.5
Retaining cables GN111.2
Spiral retaining cables GN111.4
