GN115 Latch with Key, Locating Ring Chrome Plated, Lockable



CAD Viewer Technical Data

Series Selector

Options

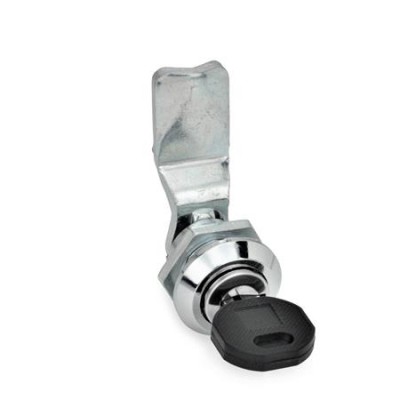

Type SC - Operation with key (same lock)

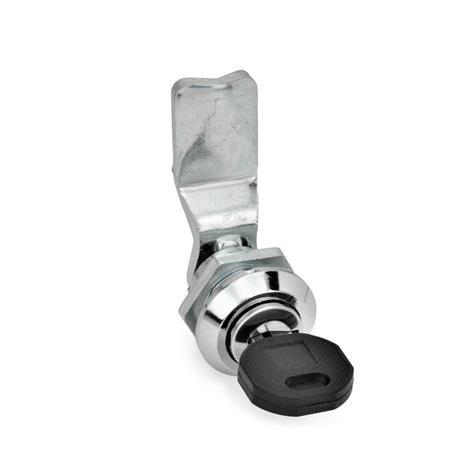

Type SU - Operation with key (different lock)

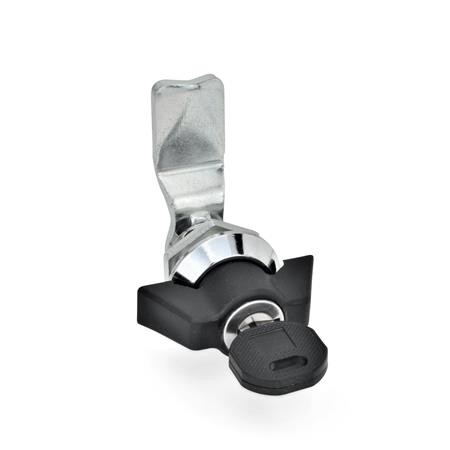

Type SCK - Operation with wing knob (same lock)

Type SUK - Operation with wing knob (different lock)

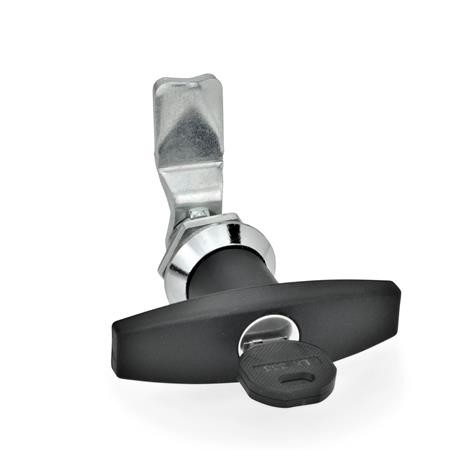

Type SCT - Operation with T-Handle (same lock)

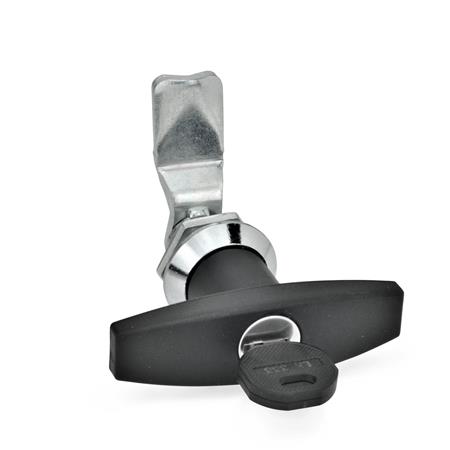

Type SUT - Operation with T-handle (different lock)

CAD Viewer Technical Data

Product Description

GN115 Latch with Key, Locating Ring Chrome Plated, Lockable

These lockable latches, GN 115, lock by a turning operation which is limited to 90°. This moves the locking behind the door frame. The bevels of the locking ease the closing of the door.

Latches with different cranks cover a latch distance A from 4 to 50 mm.

The types with a different lock are available in more than 200 variants, whose key is marked by numbers.

The scope of delivery includes a separately enclosed latch as well as two keys removable in both end positions.

Specification

Lock housing - Zinc die casting.

All other parts - Steel, zinc plated, blue passivated.

Key - Nickel silver, with plastic hand piece

Wing knob / T-Handle - Plastic (Polyamide PA) black, matt

Accessory

Socket key GN119.2
