> Home / Hinges, Latches and Locks for Doors, Cupboards, Drawers, Hatches and Covers

We are closed for the bank holiday, any order placed over the weekend / Monday will be processed on Tuesday on our return. Enjoy the sunshine!

PDFs

Catalogue Technical Specification

CAD Data

3D CAD Files
GN136 Type B 3D CAD Model
GN136 Type C 3D CAD Model

GN136 Hinge, Zinc Plated, Horizontally Elongated

Close Next Previous

Close Next Previous

GN136: Hinge
Type: B - with Through-holes

Close Next Previous

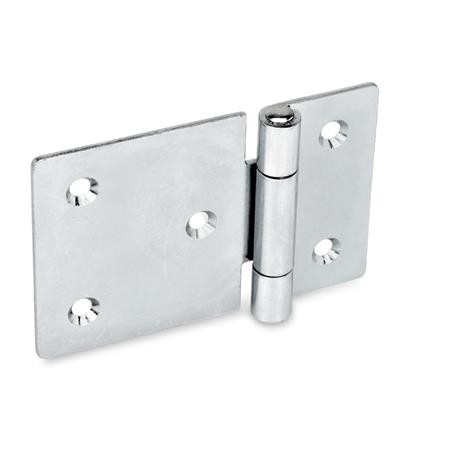

GN136: Hinge
Type: C - with Countersunk Holes

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type B - with bores for cylinder head screws / pan head screws

Type C - with bore for countersunk screws

Product Description

GN136 Hinge, zinc plated, horizontaly elongated.

Sheet metal hinges GN 136 are available in many different versions and are suitable for light to medium duty applications.

Specification

Steel ST, zinc plated, blue passivated

Pin - Stainless Steel NI AISI 304, riveted.
