GN136 Hinge, Stainless Steel, for Low to Medium Load Applications

CloseNextPrevious



CloseNextPrevious

GN136: Hinge

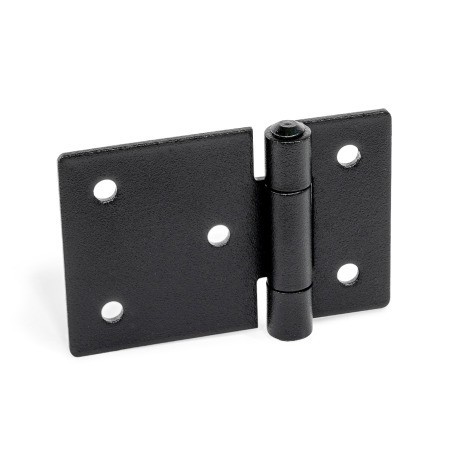

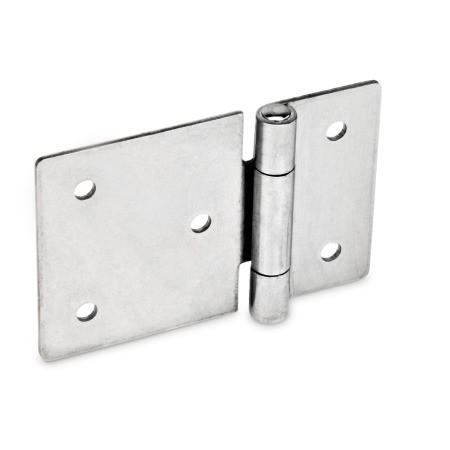

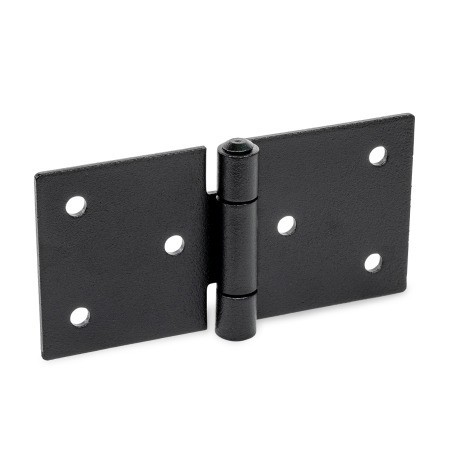

Type: B - with through-holes



CloseNextPrevious

GN136: Hinge

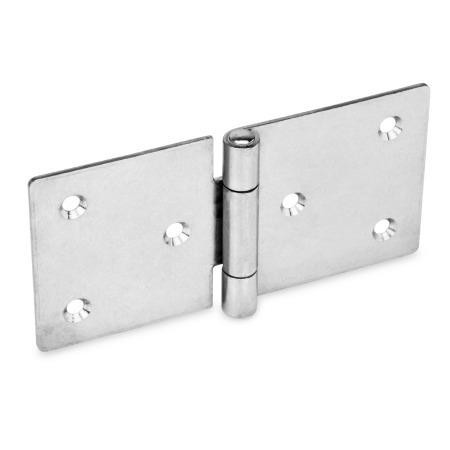

Type: C - with countersunk holes



CloseNextPrevious

GN136: Hinge

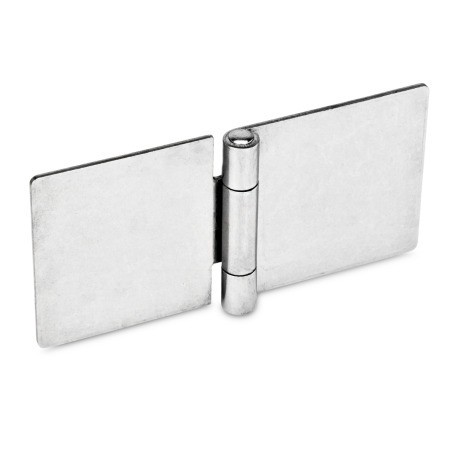

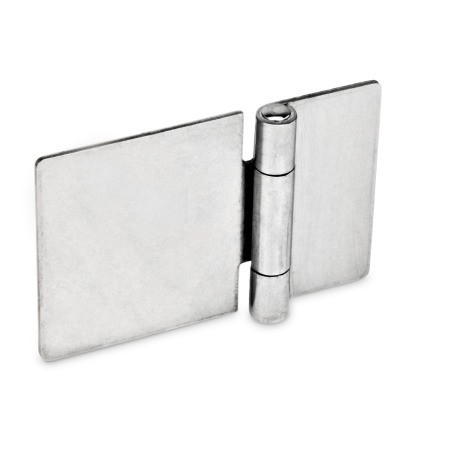

Type: A - without bores



CAD Viewer Technical Data

Series Selector

Options

Type A - without bores

Type B - with through holes

Type C - with countersunk holes

CAD Viewer Technical Data

Product Description

GN136 Stainless Steel Hinges

Stainless steel sheet metal hinges, GN136, are available in many different versions and are suitable for light to medium duty applications.

Type A can be fixed in place by welding or by drilling holes, which makes these hinges suitable for customisation.

Specification

Stainless Steel NI AISI 304

Pin - Stainless Steel AISI 304, riveted
