GN1400 Telescopic Slides, Partial Extension, Load Capacity up to 280N

images/300/GN1400-Telescopic-slides-with-partial-extension-load-capacity-up-to-280-N-drawing_H.png

CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Type A - without rubber stop

Identification no. 1 - Fastening using through holes

CAD Viewer Technical Data

Product Description

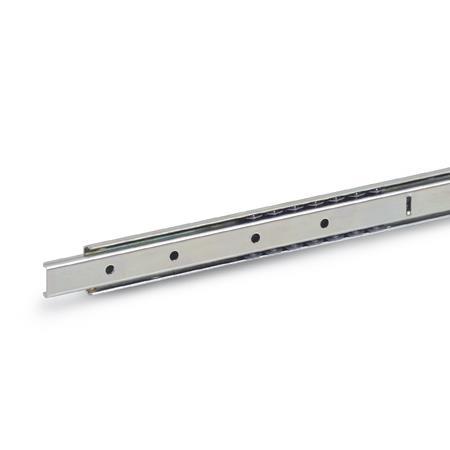

GN1400 Telescopic Slides, Partial Extension, Load Capacity up to 280N

Telescopic slides GN 1400 are installed vertically and in pairs. The stroke reaches ≈ 75 % of the nominal length l1 (partial extension). Type A, without a rubber stop, has end stops made out of steel, which prevents the slide from being unintentionally pulled out or detached. If larger static or dynamic loads occur in the direction of extension, they should be absorbed by external stop elements.

The telescopic slides are delivered in pairs. They can be installed on the extension on either the left or right side due to the mechanics. All mounting holes are easy to reach without additional auxiliary holes. Only the mounting holes are shown, but other production-related holes may be present.

Specification

Slide profile - Steel, zinc plated, blue passivated   ZB

Bearings - Roller bearing steel, hardened

Ball cage - Steel, zinc plated

Operating temperature -20 °C to 100 °C

On Request

Other lengths and hole spacings. Other attachment options. Option with rubber stop. Option with locking device (back, front, or back-front). Other surfaces. Option with support bracket. Option with retraction dampening, external.
