GN147.7 Locking Slide Units

Choose your Part

Please select desired options to reveal part number, price and availability

Options

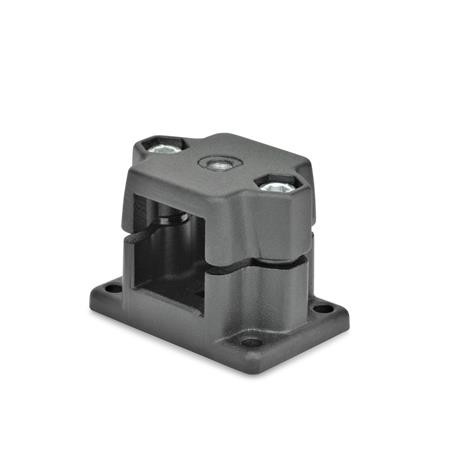

Identification Number G - With Thread

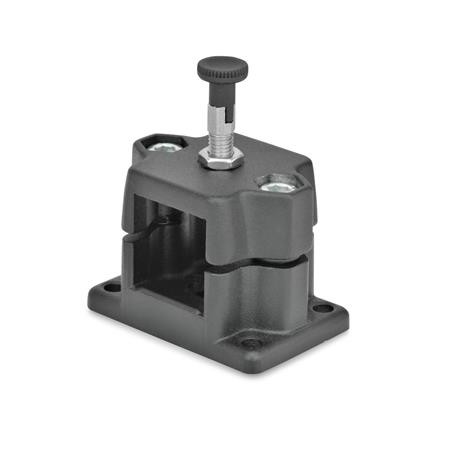

Identification Number R - With Indexing Plunger

Identification Number D - With Spring Plungers

Product Description

GN147.7 Locking Slide Units

With locking slide units GN 147.7, recurring positions along a square construction tube can be moved to easily and quickly. The required holes for type R or countersinks for type D can be created by the user according to the design instructions or ordered as completely finished construction tubes with locking holes GN990.1. They can be replaced by clamping kits GN911 (see dimensions table for order designation) for fast and tool-free slide unit clamping. Centering bushings in the pass-through holes eliminate the axial play between the top and bottom parts of the locking slide units. Locking slide units GN147.7 are delivered with unmounted locking bolts (type R) or spring-loaded spacers (type D). Type G with thread is universally suitable for specific applications.

Specification

Aluminum - plastic coated, black, RAL 9005, textured finish SW

Fastening elements / Transfer elements - Socket cap screws DIN912, Hexagon nuts DIN985, Centering bushings

Stainless Steel AISI 304

Indexing plunger GN717, type CK, Plunger pin, Stainless Steel AISI 303, Knob - Plastic (Polyamide PA), black, matte

Spring plunger GN615.9, type KN - Stainless Steel AISI 304, ball with friction bearing, with internal hexagon, Stainless Steel-Lock nut ISO 4035

Accessory

Clamping kits GN911
