GN181 Fastening Sets for Cabinet U Handles

 images/300/GN-181-Fastening-sets-for-cabinet-U-handles-Drawing_W.png

Select Values to Buy:

Tech Spec:



GN181 Fastening Sets for Cabinet U Handles

These fastening sets GN181 make it possible to mount different cabinet U handles and tubular handles with internal threads from the operator's side.

The mounting position of the fastening plates is fully customisable, allowing a sideways offset or mounting with different drillhole spacings.

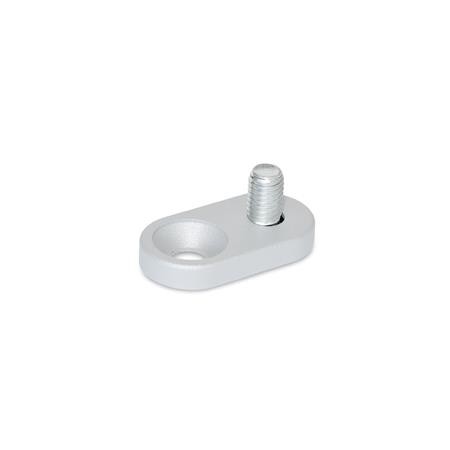

A fastening set consists of 2 fastening plates and 2 countersunk screws.

Specification

Zinc die casting ZDplastic coated. Black, RAL 9005, textured finish SW. Silver, RAL 9006, textured finish SR

Countersunk screws - DIN 7991, steel zinc plated, blue passivated

RoHS compliant

Select / Deselect Visible Columns
Close
HideMaterialShow
Hided1Show
Hided2Show
HideFinishShow
HidebShow
Hided3Show
HidelShow
HidemShow
HidesShow
HidetShow
HideCountersunk screw DIN7991Show
Hidefor cabinet "U" handlesShow
PartCodeMateriald1d2Finishbd3lmstCountersunk screw DIN7991for cabinet "U" handlesMass

GN181-ZD-8-M4-SWZD8M4SW104201037M4x10GN425-8-...0.004
GN181-ZD-8-M4-SRZD8M4SR104201037M4x10GN425-8-...0.004
GN181-ZD-10-M5-SWZD10M5SW125241248M5x12GN425-10-..._/_GN425.1-10-...0.008
GN181-ZD-10-M5-SRZD10M5SR125241248M5x12GN425-10-..._/_GN425.1-10-...0.008
GN181-ZD-12-M6-SWZD12M6SW1462612410M6x14GN425-12-..._/_GN425.1-12-...0.018
GN181-ZD-12-M6-SRZD12M6SR1462612410M6x14GN425-12-..._/_GN425.1-12-...0.014
GN181-ZD-16-M6-SWZD16M6SW18634164.59.5M6x14GN425-16-...0.022
GN181-ZD-16-M6-SRZD16M6SR18634164.59.5M6x14GN425-16-...0.022
GN181-ZD-20-M6-SWZD20M6SW22640184.59.5M6x14GN565-20-..._/_GN565.5-20-...0.035
GN181-ZD-20-M6-SRZD20M6SR22640184.59.5M6x14GN565-20-..._/_GN565.5-20-...0.035
GN181-ZD-20-M8-SWZD20M8SW2284220612M8x18GN426-20-... / GN426.1-20-...0.043
GN181-ZD-20-M8-SRZD20M8SR2284220612M8x18GN426-20-... / GN426.1-20-...0.043
GN181-ZD-26-M8-SWZD26M8SW2885224612M8x18GN565-26-...0.096
GN181-ZD-26-M8-SRZD26M8SR2885224612M8x18GN565-26-...0.093
GN181-ZD-28-M10-SWZD28M10SW301056266.513.5M10x20GN426-28-... / GN426.1-28-...0.089
GN181-ZD-28-M10-SRZD28M10SR301056266.513.5M10x20GN426-28-... / GN426.1-28-...0.089
