GN187.5 Stainless Steel Locking Plate
Choose your Part
Please select desired options to reveal part number, price and availability
Options

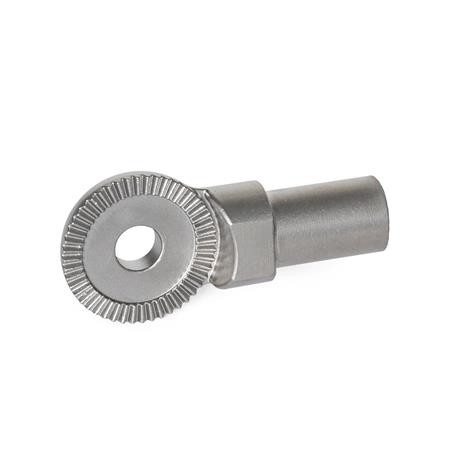

Type A - Stud, Unthreaded (for welding on)
Type B - Stud, with threaded insert
Type C - stud, with threaded stud

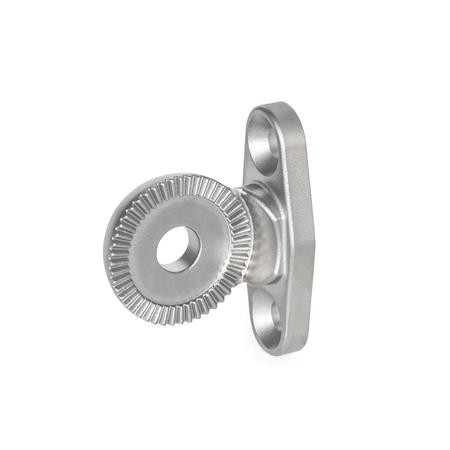

Type DH - Fastening flange, horizontal

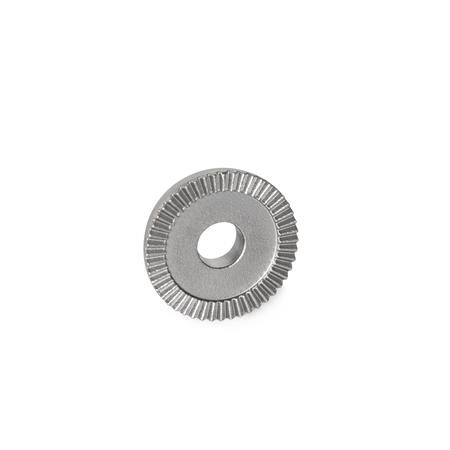

Type E - Plate (for welding on)
Product Description
GN187.5 Stainless Steel Locking Plates
Stainless steel locking plates GN 187.5 can be installed in combination with locking joint sets GN187.6 to create locking joints. This allows gear lever handles and retaining tubes or trays and mounts to be adjusted relative to each other at defined angles with a form-locking connection. The angle orientation of the teeth is adapted to the connecting elements, permitting an axis-parallel or right-angled arrangement.
Held together and centered by locking joint sets, the various types can be combined together arbitrarily with identical the nominal sizes d1. Stainless steel thrust springs GN187.2 can be placed between the locking heads during mounting, allowing a clean separation upon removal. Additional design possibilities arise from the compatibility of the locking heads with the locking plates GN187.4.
When welding on, type E be easily positioned on the opposing part and fastened by means of the mounting holes d8 (which are aligned with the teeth) using dowel pins or positioning pins.
Specification
Stainless steel precision casting NI AISI CF-8, matte shot-blasted.
Accessory
Locking joint sets GN187.6
Serrated locking plates (Steel / Stainless Steel) GN187.4
Stainless steel thrust springs GN187.2
