Type A - With Pass Through Hole, Without Bushing
Type B - With Threaded Bushing
Type C - With Threaded Bushing and Centring Step
Product Information

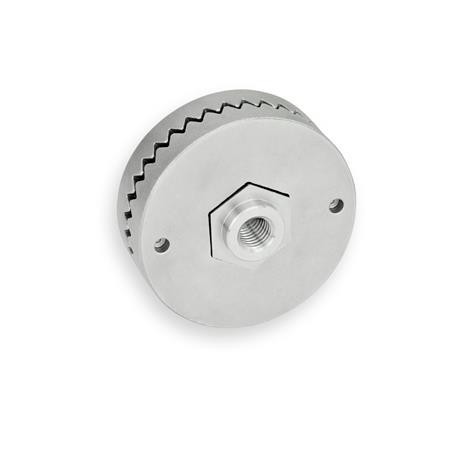

GN188 Serrated Locking Plates, Stainless Steel
With the aid of serrated locking plates GN 188, standard components can be interlocked and firmly attached in defined angular increments. They are joined by welding.
The toothing is positioned exactly on the alignment holes d4, which guarantees a parallel or right-angled arrangement.
The thrust spring is placed between the toothed discs during assembly and ensures that the toothed discs separate properly when loosening. The delivery includes two serrated locking plates, one thrust spring and, depending on the version, a threaded bushing.
Specification
Stainless Steel precision casting NI - AISI CF-8
Threaded bushing - Stainless Steel AISI 304
Thrust spring - Stainless Steel AISI 301
