GN210 Gear Levers, Zinc Die Cast

Choose your Part

Please select desired options to reveal part number, price and availability

Options

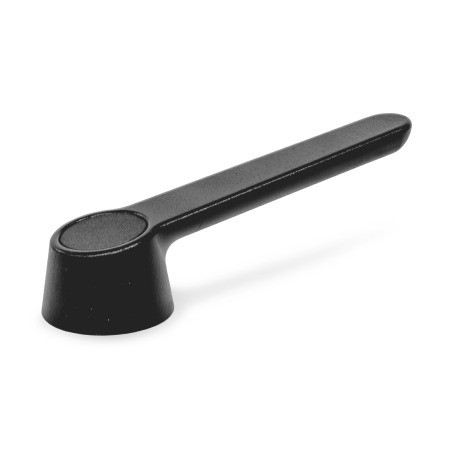

Bore code B - without keyway, without clamping

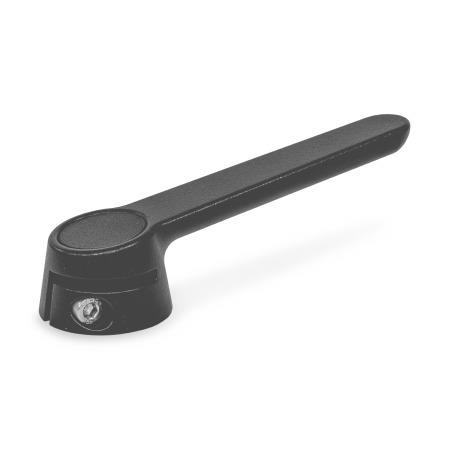

Bore code BK - without keyway, with clamping

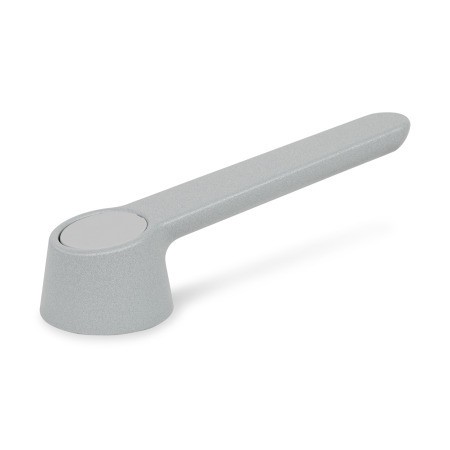

Bore code K - with keyway, without clamping

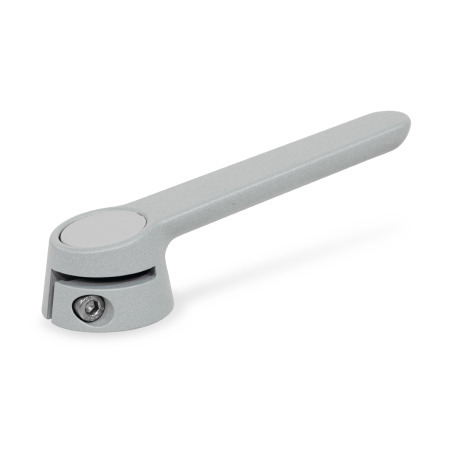

Bore code KK - with keyway, with clamping

Bore code V - with double square, without clamping

Bore code VK - with double square, with clamping

Cap code N - plain

Product description

GN210 Gear Levers, Zinc Die Cast

Gear levers GN 210 are used to drive shafts, such as for switching gears and engaging clutches or operating valves and latches.

The torque is transmitted through a positive connection either via a parallel key or a square drive. This ensures a defined angular position between the shaft and the handle. The angular position can be freely defined using gear levers with smooth bore.

Gear levers with parallel key or square drive can be secured axially with a countersunk washer. The versions with clamping transmit torques and forces with zero backlash via frictional locking and secure the hub axially. They are easy to install and allow for subsequent adjustment.

The rotational angle of the gear levers can be held with spring plungers or limited with dowel pins. An application specific rotational angle can be defined by using two dowel pins.

Specification

• Handle, zinc die cast
  • Powder coated
  • Silver, RAL 9006, textured finish SR
  • Black, RAL 9005, textured finish SW
  • Keyway DIN6885-1
    • P9 for type K
    • JS9 for type KK
• Cap, plastic, polyamide (PA), removable
  • Grey for SR
  • Black for SW
• Socket cap screw ISO 4762, for bore code BK / KK / VK, stainless steel.

Accessory

Parallel keys DIN6885 (steel and stainless steel)
Countersunk washers GN184 (steel, blackened or zinc plated)
Countersunk washers GN184.5 (stainless steel)
Spring plungers GN614 (plastic or stainless steel)
