GN22870 Wheels, Wheel Tread Rubber, Wheel Core Polypropylene
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Bearing Type G - Friction bearing
Type A - Wheel without bracket
Product Description

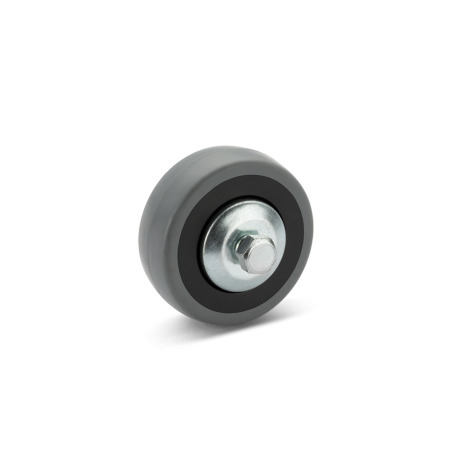

GN22870 Wheels, Wheel Tread Rubber, Wheel Core Polypropylene
Wheels GN 22870 are used in industrial and public indoor areas for tasks such as moving light materials and equipment.
The wheel tread offers low rolling resistance and high elasticity. It is gentle on floors and good at overcoming obstacles.
With integrated thread guard to prevent textile threads from wrapping around the wheel axle and protect the bearing from soiling.
Specification
- Wheel tread - natural rubber (NR)
- Grey, abrasion resistant, hardness 80 Shore A
- Wheel core - plastic, polypropylene (PP)
- Thread guard - polyamide (PA) for d1 = 40. Steel of d1 > 40
- Bearing pins / Nuts - steel, zinc plated
- Operating temperature -5º C to +40º C
CAD Viewer
Technical Data
