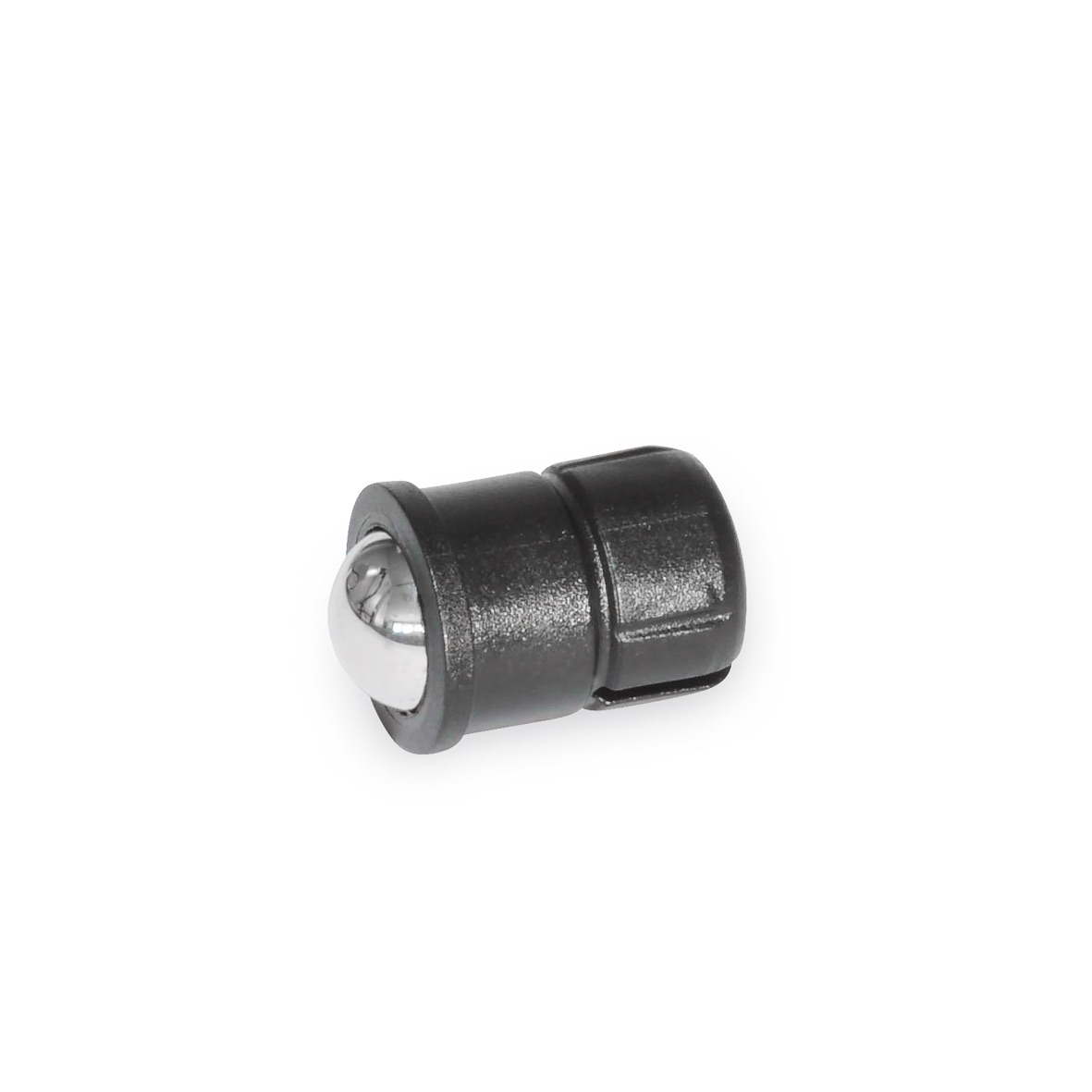

GN614.5 Spring Plunger, Press On Type, Self Clamping

images/300/GN614.5_Spring_Plunger_Press_On_Self_Clamping_W.gif

Select Values to Buy:

Tech Spec:



GN614.5 Spring Plunger, Press On Type, Self Clamping

These spring plungers are used as detents as well as for push on and push off applications and for ejectors. The geometric shape of the plastic housing generates a self clamping function which compensates drill hole tolerances of as much as 0.2 mm. It also allows hand tightened assembly and makes overhead installation easier.

Specification

Housing - Plastic (Polyacetal POM) KU, temperature resistant up to 50° C

Ball - Stainless Steel AISI 420C, hardened

Housing and ball - Plastic (Polyacetal POM) KD temperature resistant up to 50° C

Spring - Stainless Steel NI AISI 631

RoHS compliant

Select / Deselect Visible Columns
Close
Hided1Show
HideMaterialShow
Hided2Show
Hided3Show
Hided4Show
Hidel1Show
Hidel2Show
HidewShow
HideSpring load in N initial Show
HideSpring load in N endShow
PartCoded1Materiald2d3d4l1l2wSpring load in N initial Spring load in N endMass

GN614.5-4-KU4KU34.64510.836.50
GN614.5-4-KD4KD34.64510.836.50
GN614.5-5-KU5KU45.6561169.40
GN614.5-5-KD5KD45.6561169.40
GN614.5-6-KU6KU56.56711.66.212.60.001
GN614.5-6-KD6KD56.56711.66.212.60
GN614.5-8-KU8KU6.58.58911.91020.40.002
GN614.5-8-KD8KD6.58.58911.91020.40.001
GN614.5-10-KU10KU8111013.51.52.411.922.30.003
GN614.5-10-KD10KD8111013.51.52.411.922.30.002
