Standard Machine Elements > Hinges, Latches and Locks for Doors, Cupboards, Drawers, Hatches and Covers > Hinges
< Previous Product

GN237.1 Hinge, Reinforced Plastic, Temperature Resistant





Form A - 2x2 bores for countersunk screws.

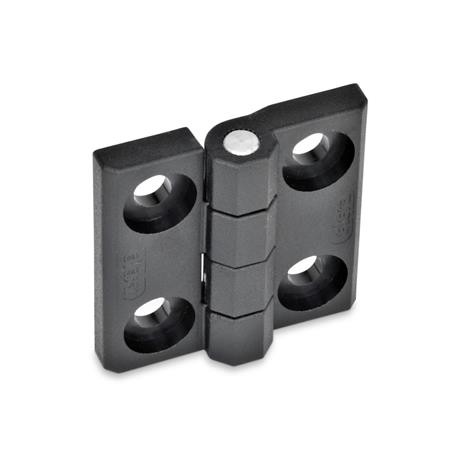

Form B - 2x2 bores for socket head cap screws.

Form C - 2x2 threaded studs.

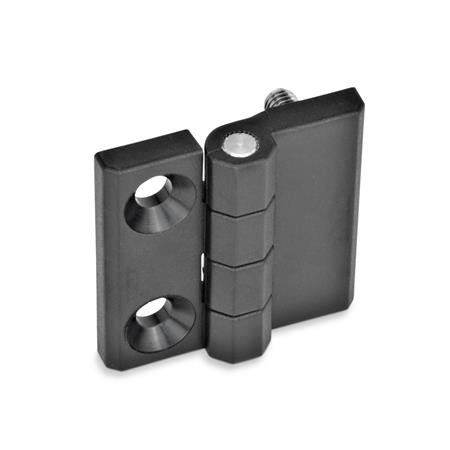

Form D - 2x bores f. countersunk screws/2x threaded studs.

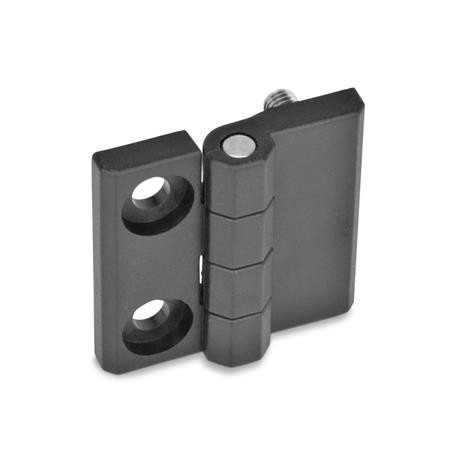

Form E - 2x bores f. socket head cap screws/2x threaded studs.



Select Values to Buy:

Tech Spec:


GN237.1 Hinge, Reinforced Plastic, Temperature Resistant

These heat resistant plastic hinges are both robust and cost effective and are excellent value for money. Easy to attach with five different mounting options. With a wide rotation angle they for ideal for cupboards, doors, hatches & covers.

Specification

Plastic (Polyamide PA), glass fibre reinforced, temperature resistant up to 140C, black, matt.

Pin - Stainless Steel, AISI 303

Threaded studs - Steel, nickel plated.

RoHS compliant



Select / Deselect Visible Columns
PartCodel1l2Typed1d2d3h1h2h3h4l3l4l5m1m2m3m4tMaterialMass

GN237.1-30-30-A3030A~4.52.573.54810.510.5~1818991.3KU0.006
GN237.1-30-30-B3030B~4.52.573.54810.510.5~1818991.3KU0.006
GN237.1-40-40-A4040AM55.54955.511141412252512.512.51.7KU0.014
GN237.1-40-40-B4040BM55.54955.511141412252512.512.51.7KU0.015
GN237.1-40-40-C4040CM55.54955.511141412252512.512.51.7KU0.026
GN237.1-40-40-D4040DM55.54955.511141412252512.512.51.7KU0.02
GN237.1-40-40-E4040EM55.54955.511141412252512.512.51.7KU0.02
GN237.1-50-50-A5050AM66.5611.566.514181812303015153KU0.031
GN237.1-50-50-B5050BM66.5611.566.514181812303015153KU0.03
GN237.1-50-50-C5050CM66.5611.566.514181812303015153KU0.047
GN237.1-50-50-D5050DM66.5611.566.514181812303015153KU0.04
GN237.1-50-50-E5050EM66.5611.566.514181812303015153KU0.04
GN237.1-60-60-A6060AM88.581588.518212114.5363618183.7KU0.057
GN237.1-60-60-B6060BM88.581588.518212114.5363618183.7KU0.057
GN237.1-60-60-C6060CM88.581588.518212114.5363618183.7KU0.101
GN237.1-60-60-D6060DM88.581588.518212114.5363618183.7KU0.079
GN237.1-60-60-E6060EM88.581588.518212114.5363618183.7KU0.079
