GN2428
Wiper for Roller Guide Systems, Plastic and Steel
Please select desired options to reveal part number, price and availability
Options
Type K - Compact design
Version X - For fixed bearing rails.
Product Description

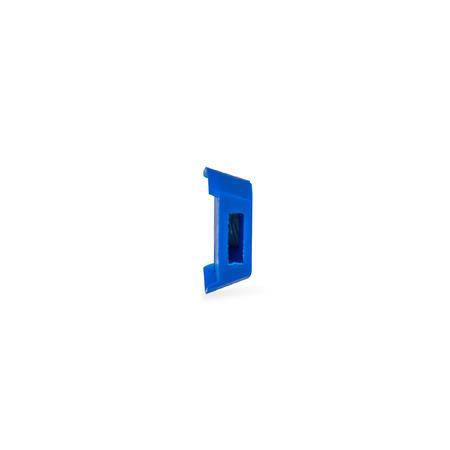

GN2498 Wiper for Linear Guide Rails.
Wipers GN 2498 protect against dirt deposits in stainless steel cam roller linear guide rails GN2492 and stainless steel cam rollers GN2496.
The wipers are provided as a replacement part for cam roller carriage GN 2494 to allow easy exchange in case of wear. Alternatively, they can be used on custom-built cam roller carriages. Based on the dimensions of the rectangular cutout designated for fastening them to the cam roller carriage.
The material can also be used in special environments that can be found, for example, in the pharmaceutical and food processing industries.
The wipers can be manually pushed onto the provided retaining tabs on the cam roller carriages and prepositioned. When inserting the carriage into the guide rail, check the position and adjust if necessary. The wipers will automatically assume proper alignment during operation.
Specification
Wiper - Polyurethane (TPU), blue, FDA compliant. Operating temperature -20 °C to 100 °C
