GN24 Levelling Feet, With Turned Base Plate, With Mounting Holes, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type D0 - Fine turned, without rubber underlay

Type D1 - Fine turned, with rubber underlay, inlaid, black

Version

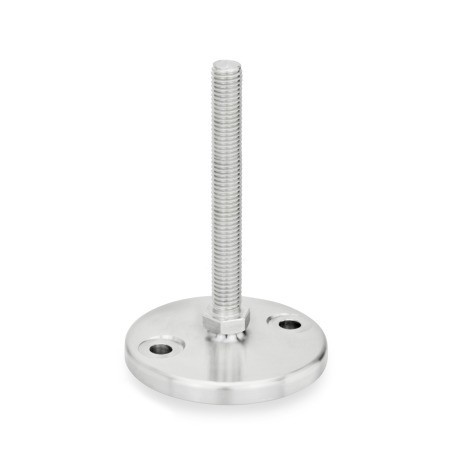

Version S - Without nut, external hex at the bottom

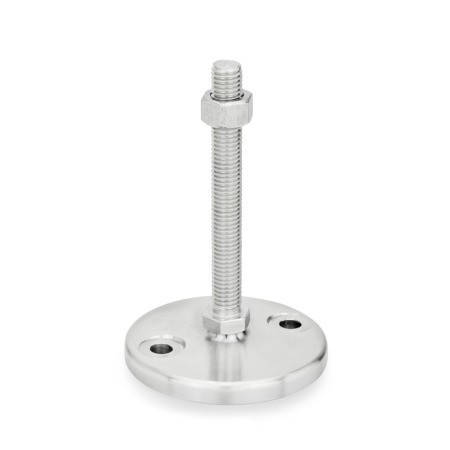

Version SK - With nut, extrenal hex at the bottom

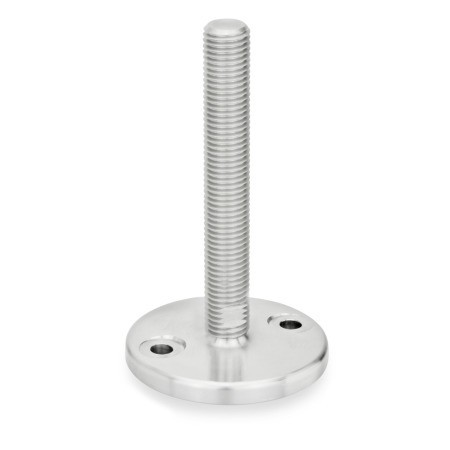

Version T - Without nut, wrench flat at the bottom

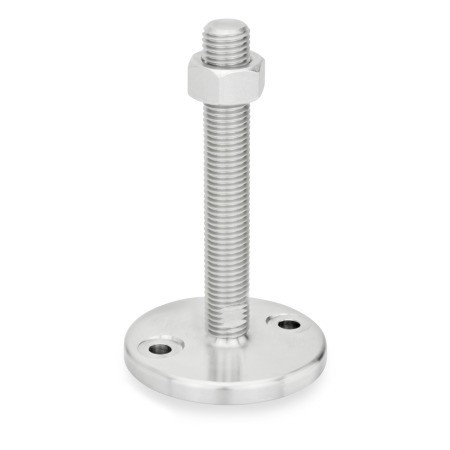

Version TK - With nut, wrench flat at the bottom

Product Description

GN24 Levelling Feet, With Turned Base Plate, With Mounting Holes, Stainless Steel

Levelling feet GN 24 are particularly suitable for use in aggressive environments.

The levelling feet are supplied assembled and cannot be disassembled.

Specification

• Base plate, stainless steel, AISI 316L
• Threaded stem, stainless steel AISI 316L
• Hex nuts ISO 4032, stainless steel
• Mounting screw, stainless steel
• Rubber underlay, acrylonitrile butadiene rubber (NBR), black, hardness 70 shore A, inserted
