GN251 Setting Bolts hardened rounded head protection support end stop

Standard Machine Elements > Screws, Nuts, Washers Clamping & Supporting Elements > Positioning Elements / Clamping Pads
< Previous Product Next Product >

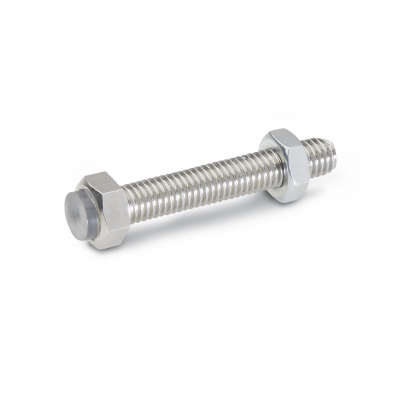

GN251 Setting Bolt, Steel, Nickel Plated, Locating surface with Polyuretahn disc





Type AK - with lock nut

Type BK - with Polyurethan disc

Select Values to Buy:

Tech Spec:



GN251 Setting Bolt, Steel, Nickel PlatedLocating surface with Polyuretahn disc

Setting bolts GN251 are produced with a hardened and rounded head which can be used as support or setting bolt as an end stop.

The version with Polyurethan disc (Type BK) functions as damping element or protection for sensitive surfaces.

Specification

Screw - Tensile strength 500 N/mm2

Type BK - Nickel Plated

Hexagon nut - Steel zinc-plated, blue passivated

RoHS compliant



Select / Deselect Visible Columns
PartCoded1l1Typed2ek1k3l2l3sMaterialMass

GN251-M4-15-BKM415BK58.12.82.42.11.57ST0.002
GN251-M4-20-BKM420BK58.12.82.42.11.57ST0.003
GN251-M4-25-BKM425BK58.12.82.42.11.57ST0.003
GN251-M4-30-BKM430BK58.12.82.42.11.57ST0.003
GN251-M4-35-BKM435BK58.12.82.42.11.57ST0.004
GN251-M4-40-BKM440BK58.12.82.42.11.57ST0.004
GN251-M5-15-BKM515BK69.23.53.22.41.58ST0.004
GN251-M5-20-BKM520BK69.23.53.22.41.58ST0.004
GN251-M5-25-BKM525BK69.23.53.22.41.58ST0.005
GN251-M5-30-BKM530BK69.23.53.22.41.58ST0.006
GN251-M5-35-BKM535BK69.23.53.22.41.58ST0.061
GN251-M5-40-BKM540BK69.23.53.22.41.58ST0.007
GN251-M6-20-BKM620BK811.543.63210ST0.007
GN251-M6-25-BKM625BK811.543.63210ST0.008
GN251-M6-30-BKM630BK811.543.63210ST0.009
GN251-M6-35-BKM635BK811.543.63210ST0.01
GN251-M6-40-BKM640BK811.543.63210ST0.01
GN251-M6-45-BKM645BK811.543.63210ST0.011
GN251-M6-50-BKM650BK811.543.63210ST0.012
GN251-M8-20-BKM820BK10155.553.7213ST0.015
GN251-M8-25-BKM825BK10155.553.7213ST0.016
GN251-M8-30-BKM830BK10155.553.7213ST0.018
GN251-M8-35-BKM835BK10155.553.7213ST0.02
GN251-M8-40-BKM840BK10155.553.7213ST0.021
GN251-M8-45-BKM845BK10155.553.7213ST0.023
GN251-M8-50-BKM850BK10155.553.7213ST0.024
GN251-M10-20-BKM1020BK1319.6764.5217ST0.029
GN251-M10-25-BKM1025BK1319.6764.5217ST0.031
GN251-M10-30-BKM1030BK1319.6764.5217ST0.034
GN251-M10-35-BKM1035BK1319.6764.5217ST0.036
GN251-M10-40-BKM1040BK1319.6764.5217ST0.039
GN251-M10-45-BKM1045BK1319.6764.5217ST0.041
GN251-M10-50-BKM1050BK1319.6764.5217ST0.043
