GN276.9 Swivel Clamp Connectors, Plastic
CloseNextPreviousGN276.9 Swivel Clamp Connectors
Type: AV External Serration, Colour: GR Grey
CloseNextPreviousGN276.9 Swivel Clamp Connectors
Type: AV External Serration, Colour: SW Black
CloseNextPreviousGN276.9 Swivel Clamp Connectors

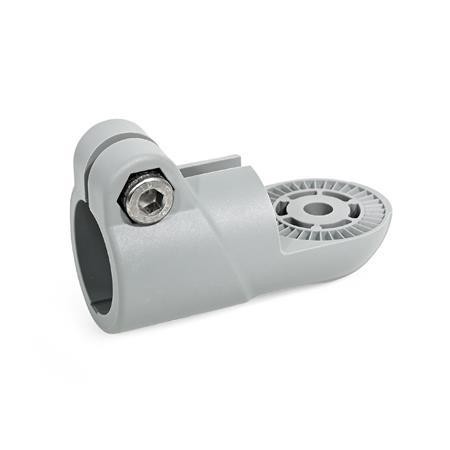

Type: IV Internal Serration, Colour: GR Grey
CloseNextPreviousGN276.9 Swivel Clamp Connectors

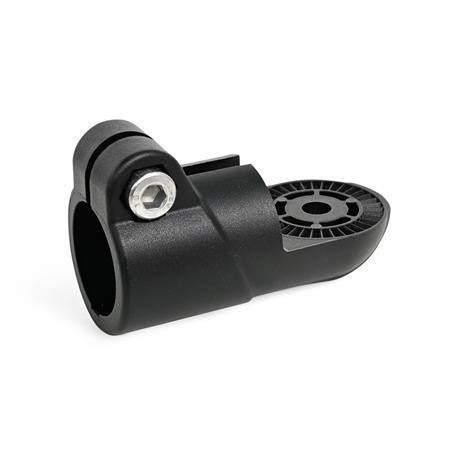

Type: IV Internal Serration, Colour: SW Black
CloseNextPreviousGN276.9 Swivel Clamp Connectors

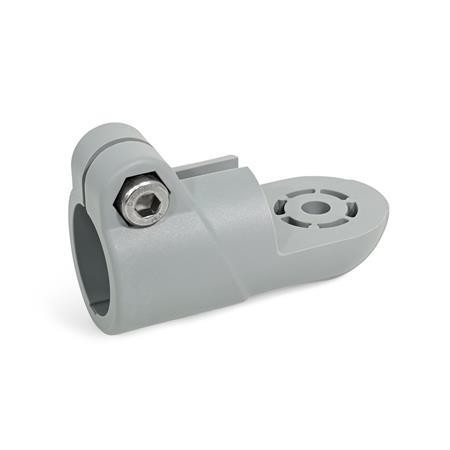

Type: OZ Without Centring Step, Colour: GR Grey
CloseNextPreviousGN276.9 Swivel Clamp Connectors

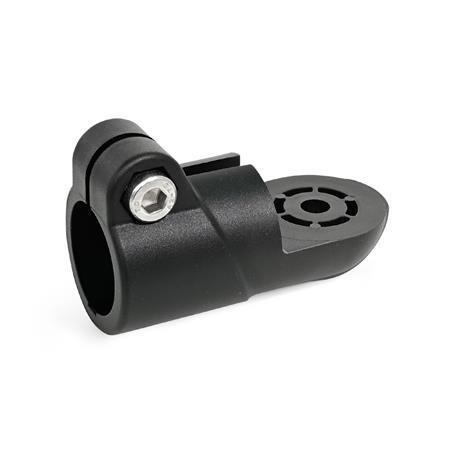

Type: OZ Without Centring Step, Colour: SW Black
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type AV - External Serration
Type IV - Internal Serration
Type OZ - without Centering Step (Smooth)
Identification No. 2 - with socket cap screw DIN 912, stainless steel
Product Description
GN276.9 Swivel Clamp Connectors, Plastic
The fixing lug of swivel clamp connectors GN 276.9 is available with a smooth surface or with external or internal serration. The clamping bore holds typical construction tubes with full surface contact over the entire cross-section.
At the screw location z, the socket cap screw reduces the bore cross-section for clamping. Adapter bushings GN290 can be used to reduce the bore cross-sections to smaller diameters.
For clamping without tools, the socket cap screw can be replaced by adjustable hand levers GN911.9, listed in the table as accessories.
Swivel clamp connectors GN276.9 can be assembled with swivel clamp connector bases GN272.9 and swivel clamp connectors GN278.9 to create swivel clamp connector joints.
Specification
- Plastic, technopolymer (Polyamide PA), glass fibre reinforced, temperature resistant up to 100º C, matte finish
- Black, RAL 9005, SW
- Grey, RAL 7040, GR
- Socket cap screw DIN912
- Hex nut DIN985, stainless steel AISI 304, self locking with polyamide ring
