GN282.10 Swivel Clamp Connector Joint, Plastic

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type S - Continuous adjustment

Type T - Adjustment in 10° steps (serrations)

Identification number 2 - With two clamping screws DIN 912, Stainless Steel

Product Description

GN282.10 Swivel Clamp Connector Joint, Plastic

In the initial position, the clamping bore axis of the swivel clamp connector joints GN 282.10 is parallel to the flange surface and can be swiveled by ±90°. It holds typical construction tubes with full surface contact over the entire cross-section of the bore.

At the screw location z₁, the socket cap screw reduces the bore cross-section for clamping. Adapter bushings GN290 can be used to reduce the bore cross-sections to smaller diameters.

The screw location z₂ serves for fixing the joint axis, which can be adjusted continuously or in 10° steps, depending on the type.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN911.9 listed in the table as accessories.

Specification

• Plastic - Technopolymer (Polyamide PA), glass fibre reinforced, temperature resistant up to 100ºC, matte finish

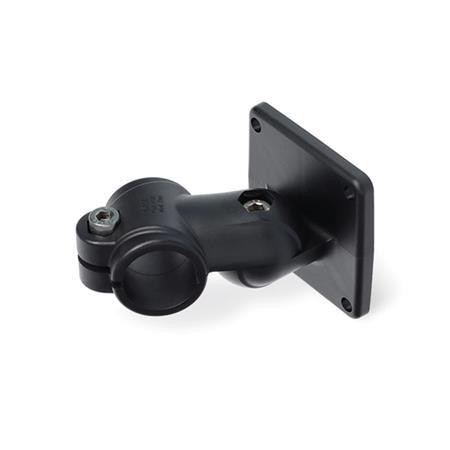

  • Black, RAL 9005, SW

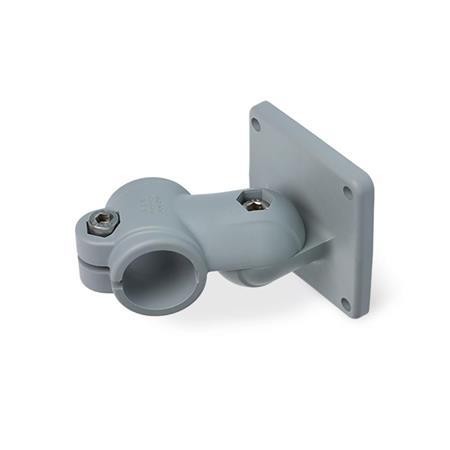

  • Grey, RAL 7040, GR
• Socket cap screws DIN912 - stainless steel AISI 304
• Hex nuts DIN985 - stainless steel AISI304, self locking with polyamide ring

Accessory

Clamping kits GN911.9
Adapter Bush GN290
