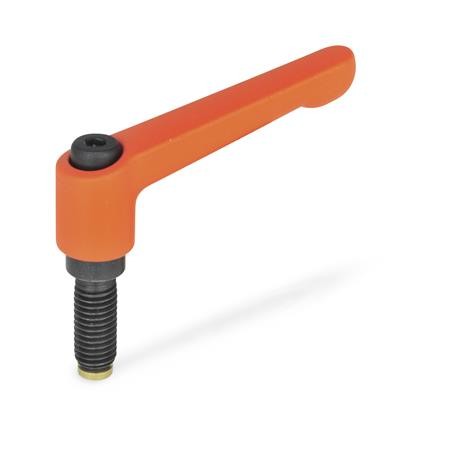

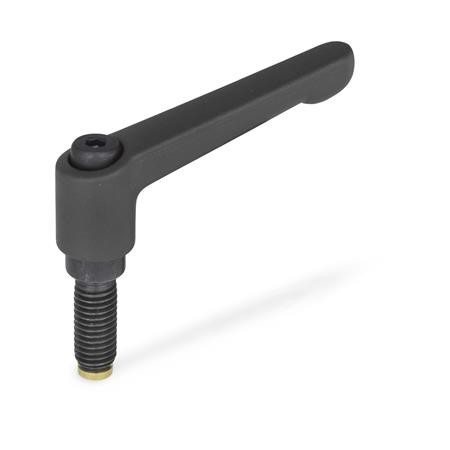

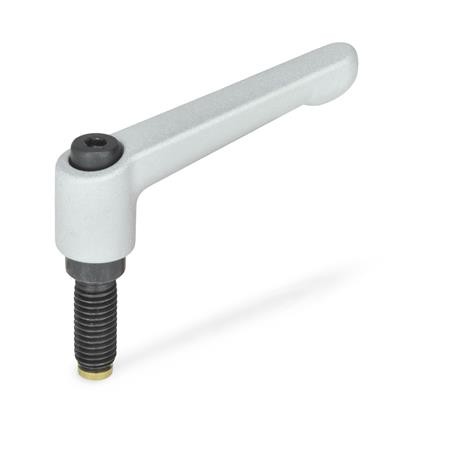

Type MS - Brass tip

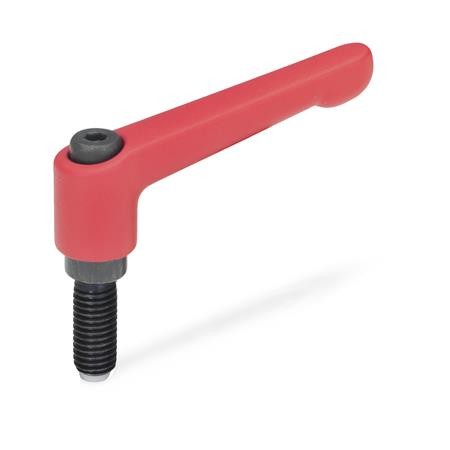

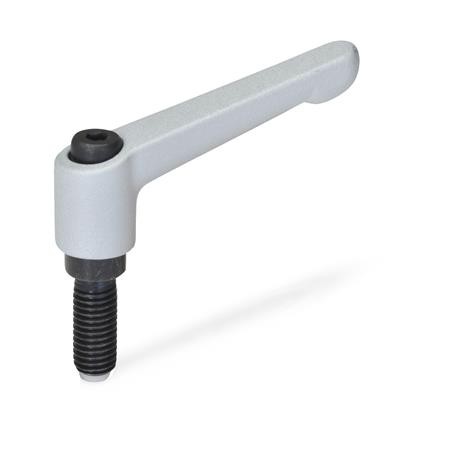

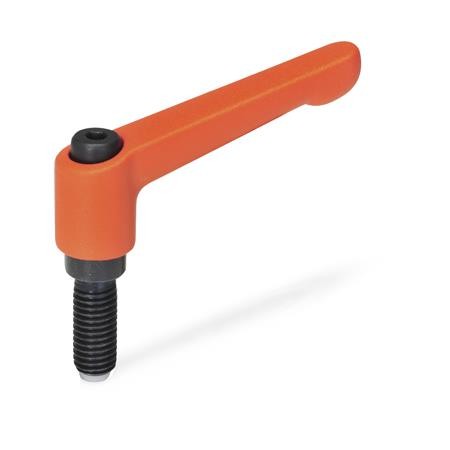

Type KU - Plastic tip

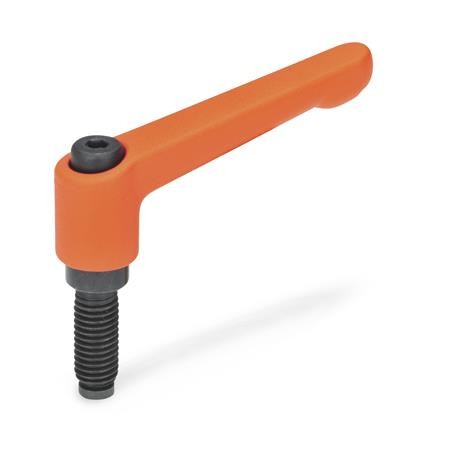

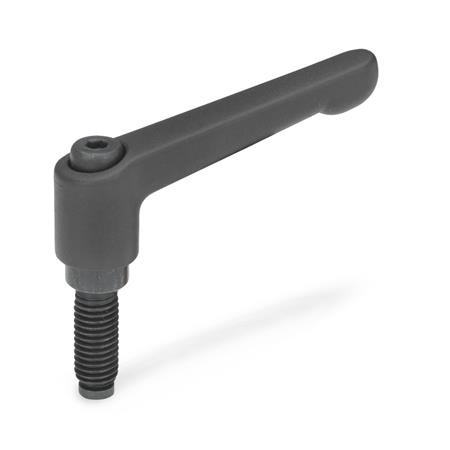

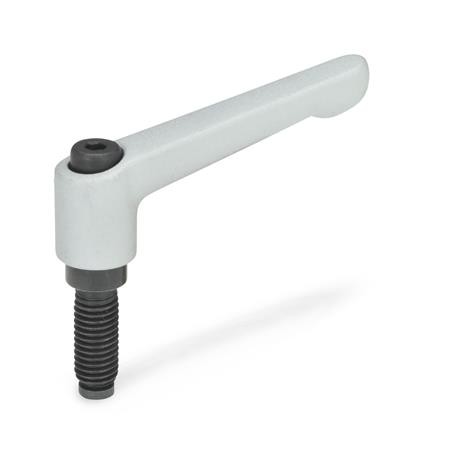

Type DZ - Hardened oval tip

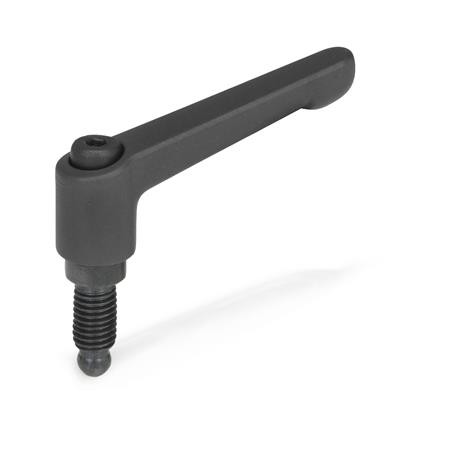

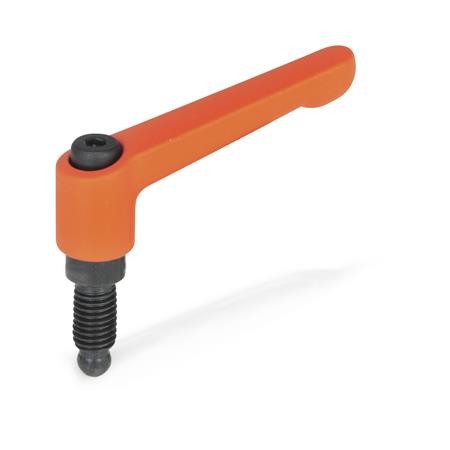

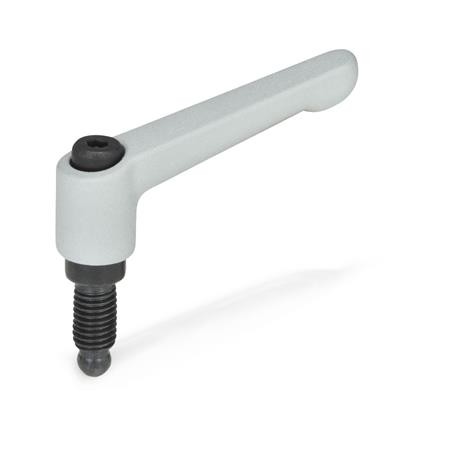

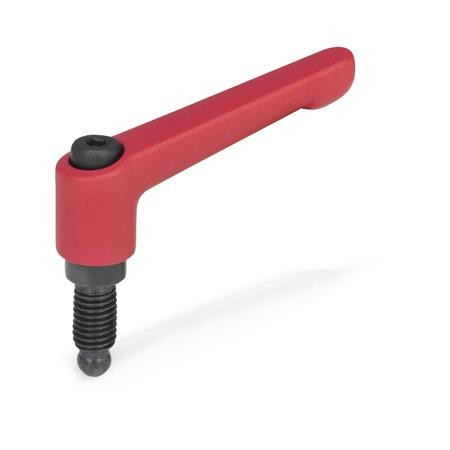

Type ZK - Spherical end

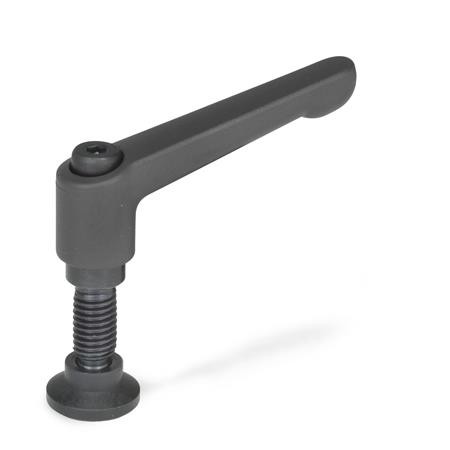

Type ZD - Spherical end with swivel thrust pad
GN306 Adjustable Hand Levers with Special Tipped Threaded Studs
Adjustable hand levers GN306 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.
Pulling the lever disengages the serrations, allowing it to be swivelled to the ideal clamping position. When the lever is released, the serrations
The brass and plastic tipped studs (Types MS / KU) help to avoid damage to the work piece being clamped.
The hardened tipped stud (Type DZ) provides an oval point-shaped pressure point.
The swivel thrust pad (Type KD) can easily be snapped on and off.
Pad is supplied unmounted.
Also available on request - with threaded stud in Stainless Steel.
Also available on request - handle (GN302)
Handle - Zinc die casting, plastic coated, black, RAL 9005, textured finish SW. Orange, RAL 2004, textured finish OS. Red, RAL 3000, textured finish RS. Silver, RAL 9006, textured finish SR.
Threaded stud and retaining screw - Steel, blackened.
Type MS - Brass
Type KU - Plastic (POM)
Type DZ - Steel, hardened, oval point.
Thrust pad - Plastic, technopolymer (Polyacetal POM), temperature resistant up to 80°C, black, matt
