GN30 Levelling Foot, Steel, Zinc Plated, Optional Lock Nut

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A1 - Steel, zinc plated, rubber inlaid, black

Type A2 - Steel, zinc plated, rubber inlaid, white

Type A5 - Steel, plastic coated black, rubber inlaid, black

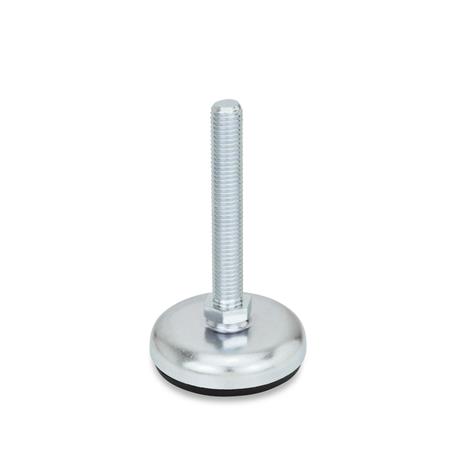

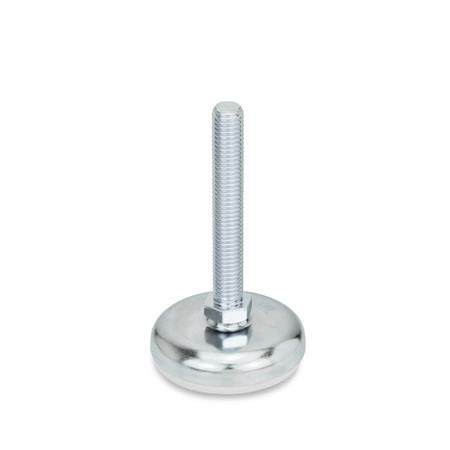

Type S - Without locknut, external hexagon below

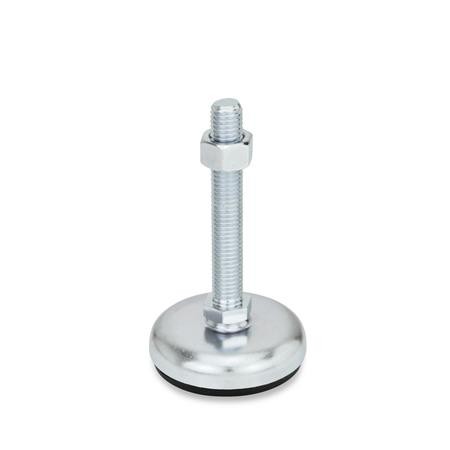

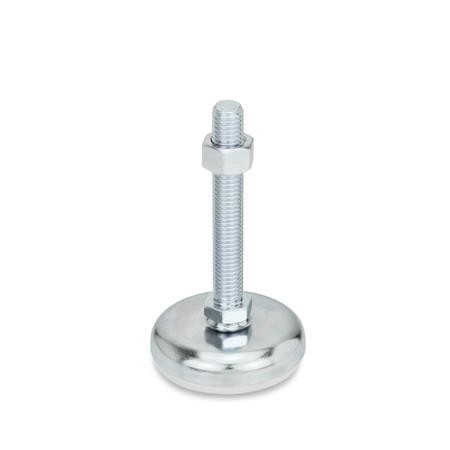

Type SK - With locknut, external hexagon below

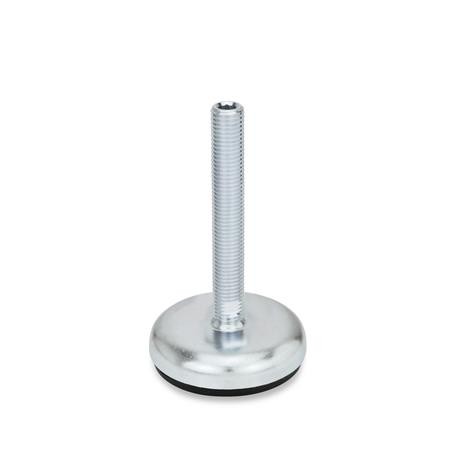

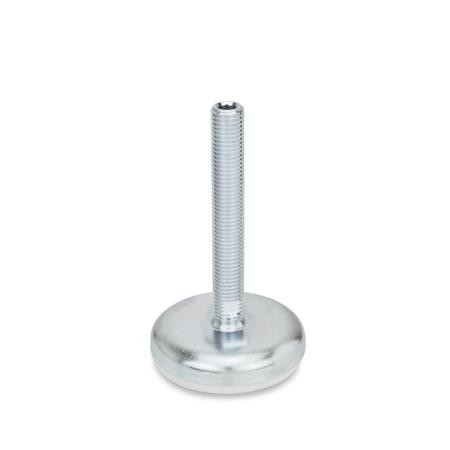

Type U - Without locknut, flat width below, internal hexagon above

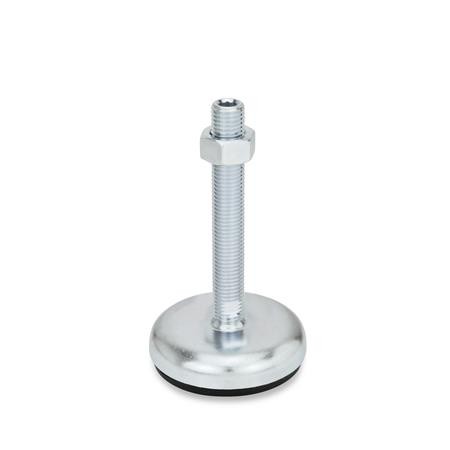

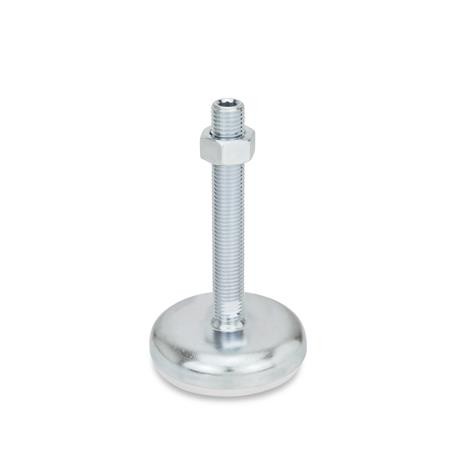

Type UK - With locknut, flat width below, internal hexagon above

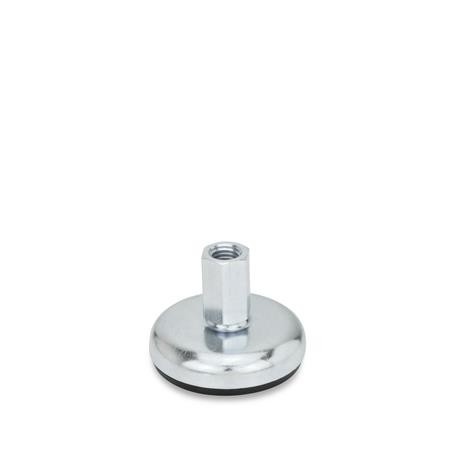

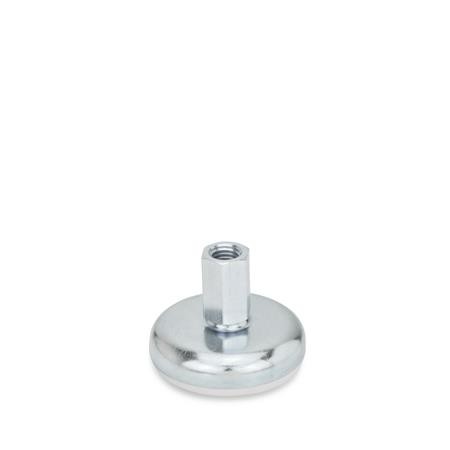

Type X - With internal thread

Product Description

GN30 Levelling Foot, Steel, Zinc Plated, Optional Lock Nut

Levelling feet GN 30 will be delivered mounted and are not removable.
A particular characteristic of these levelling feet is the solid rubber underlay being firmly embeded in the sheet metal foot and additionally fixed by a loctited screw.

The threaded stud can be either adjusted at the hexagon of the upper end or at the spanner flats at the lower end.

Specification

Base plate, sheet metal - Steel ST, zinc plated, blue passivated

Threaded stem - Steel ST, zinc plated, blue passivated

Hexagon nut ISO4032 - Steel ST, zinc plated, blue passivated

Rubber inlay, inlaid - Black: Perbunan® (NBR), 0±5 Shore A. White: Santoprene® (TPE) 80±5 Shore A
