GN313 Spring Bolts Steel plunger protrude inoperative position manually mechanically cylinder cam plate GN 313

Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Indexing Plungers
< Previous Product Next Product >

GN313 Spring Bolt, Steel, Plastic Knob

 images/300/GN313-Spring-bolts-Steel-Plastic-knob-steel-drawing_H.png

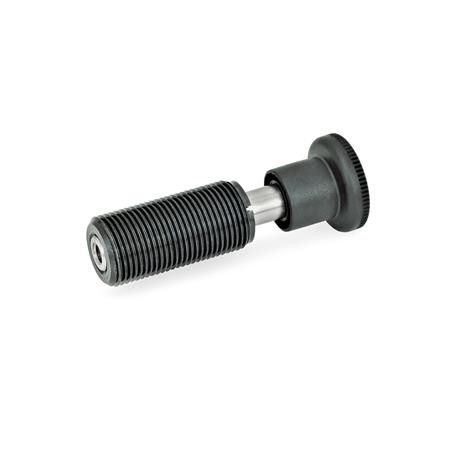

Type A Without lock nut, with knob.

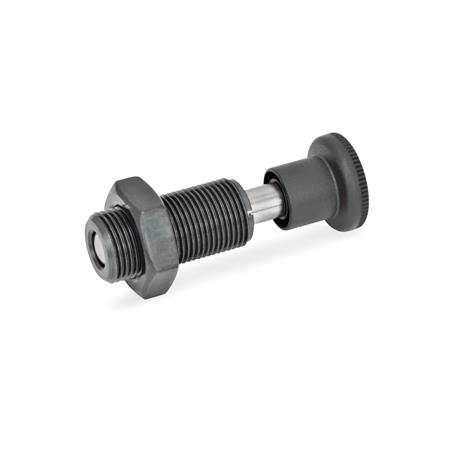

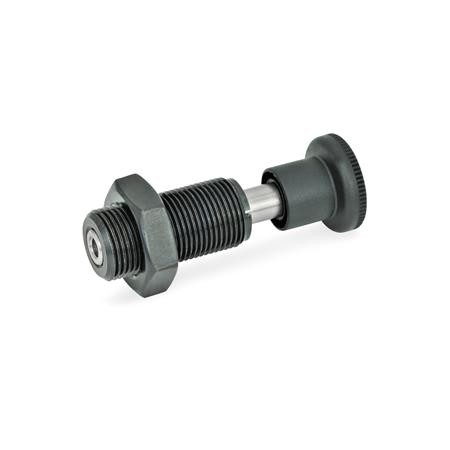

Type AK With lock nut, with lifting knob.

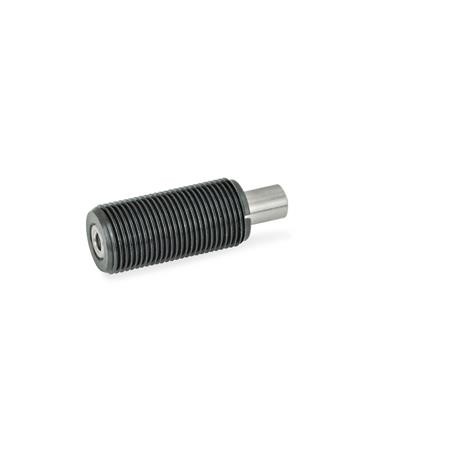

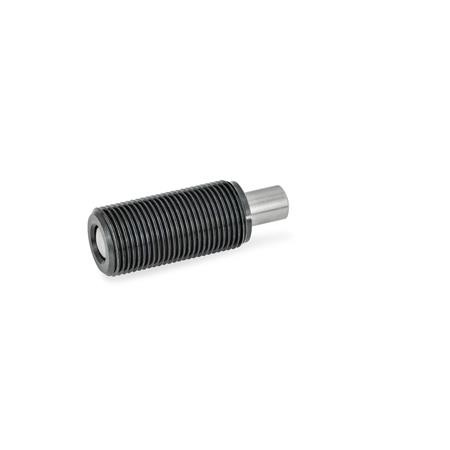

Type D Without lock nut, without knob

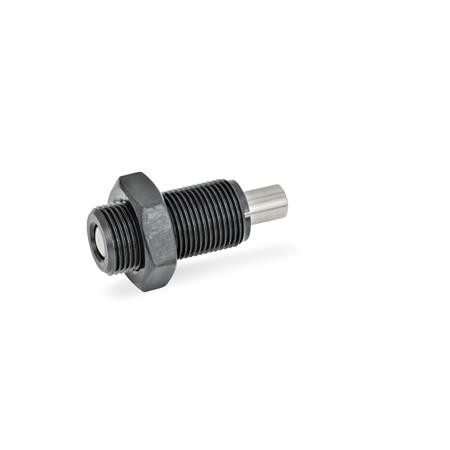

Type DK With lock nut, without knob



Identification 1 Pin without internal thread.

Identification 2 Pin with internal thread.



Select Values to Buy:

Tech Spec:



GN 313 Spring Bolt, Steel, Plastic Knob

The plunger of these spring bolts, GN313, does not protrude in the inoperative position.

They can be operated manually or in Type D and DK mechanically (pneumatic cylinder, cam plate, etc.) when it will protrude only as long as it is operated.

Using the internal thread at identification number 2 on the pressure side, special pressure bolts or a rod arrangement can be operated, for example.

Specification

Threaded socket - Steel ST, blackened.

Plunger - Stainless Steel NI AISI 303, chemically nickel plated

Knob - Plastic (Polyamide PA), black, matt, not removable.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1Id. No.TypeMateriald2d3d4l1l2l3l4tSpring load
in N
initial
Spring load
in N
end
Mass

GN313-5-A-1-ST51ASTM10x1M316622422978200.013
GN313-5-AK-1-ST51AKSTM10x1M316622422978200.15
GN313-5-D-1-ST51DSTM10x1M316622422978200.011
GN313-5-DK-1-ST51DKSTM10x1M316622422978200.016
GN313-5-A-2-ST52ASTM10x1M316622422978200.013
GN313-5-AK-2-ST52AKSTM10x1M316622422978200.015
GN313-5-D-2-ST52DSTM10x1M316622422978200.011
GN313-5-DK-2-ST52DKSTM10x1M316622422978200.02
GN313-6-A-1-ST61ASTM12x1,5M419726493579280.021
GN313-6-AK-1-ST61AKSTM12x1,5M419726493579280.035
GN313-6-D-1-ST61DSTM12x1,5M419726493579280.018
GN313-6-DK-1-ST61DKSTM12x1,5M419726493579280.02
GN313-6-A-2-ST62ASTM12x1,5M419726493579280.02
GN313-6-AK-2-ST62AKSTM12x1,5M419726493579280.045
GN313-6-D-2-ST62DSTM12x1,5M419726493579280.017
GN313-6-DK-2-ST62DKSTM12x1,5M419726493579280.02
GN313-8-A-1-ST81ASTM16x1,5M5239346548912400.048
GN313-8-AK-1-ST81AKSTM16x1,5M5239346548912400.066
GN313-8-D-1-ST81DSTM16x1,5M5239346548912400.043
GN313-8-DK-1-ST81DKSTM16x1,5M5239346548912400.052
GN313-8-A-2-ST82ASTM16x1,5M5239346548912400.047
GN313-8-AK-2-ST82AKSTM16x1,5M5239346548912400.064
GN313-8-D-2-ST82DSTM16x1,5M5239346548912400.042
GN313-8-DK-2-ST82DKSTM16x1,5M5239346548912400.09
GN313-10-A-1-ST101ASTM20x1,5M628114378571222500.098
GN313-10-AK-1-ST101AKSTM20x1,5M628114378571222500.12
GN313-10-D-1-ST101DSTM20x1,5M628114378571222500.088
GN313-10-DK-1-ST101DKSTM20x1,5M628114378571222500.12
GN313-10-A-2-ST102ASTM20x1,5M628114378571222500.093
GN313-10-AK-2-ST102AKSTM20x1,5M628114378571222500.12
GN313-10-D-2-ST102DSTM20x1,5M628114378571222500.083
GN313-10-DK-2-ST102DKSTM20x1,5M628114378571222500.08
