GN613 Indexing Plungers without Rest Position operated with standard knob

Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Indexing Plungers
< Previous Product Next Product >

GN613 Indexing Plunger without Rest Position, Steel, Plastic Knob







Type A - without lock nut, with knob

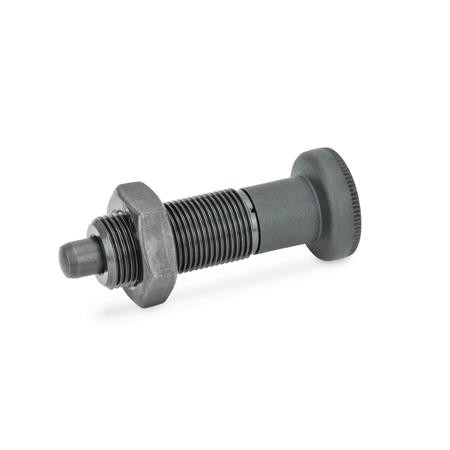

Type AK - with lock nut, with lifting knob

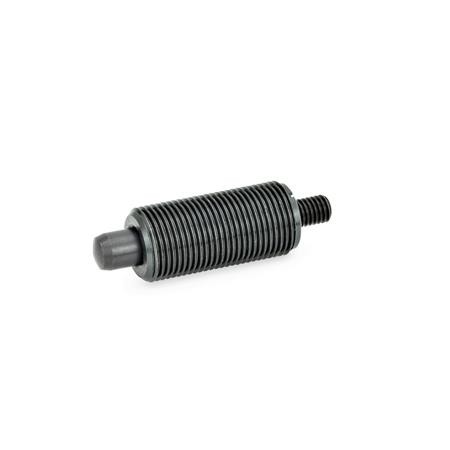

Type G - without lock nut, with threaded rod

Type GK - with lock nut, with threaded rod

Select Values to Buy:

Tech Spec:



GN613 Indexing Plunger without Rest Position, Steel, Plastic Knob

These indexing plungers are a low cost alternative with much reduced dimensions.

Type G or GK have been designed for applications where the indexing plunger is not operated with the standard knob.

The indexing plungers are designed such that the plunger set in the end position (spring is "on block") can also absorb axial forces. For applications in which these forces are substantially above the tensile force applied by the operator (Type G), GN817 indexing plungers are to be preferred.

A special screwdriver GN613.1 is available. Two slots are provided in the upper end of the body which are accessible with the knob in its retracted position.

Specification

Steel, blackened

Plunger - hardened

Knob - Plastic, Technopolymer (Polyamide PA), black matt finish, not removable

RoHS compliant

Select / Deselect Visible Columns
Close
Hided1Show
HideTypeShow
Hided2Show
Hided3Show
Hided4Show
Hidel1Show
Hidel2Show
Hidel3Show
Hidel4Show
HideSpring load in N initialShow
HideSpring load in N endShow
HideMaterialShow
PartCoded1Typed2d3d4l1l2l3l4Spring load in N initialSpring load in N endMaterialMass

GN613-5-A5AM10x121M5455226717ST0.017
GN613-5-AK5AKM10x121M5455226717ST0.02
GN613-5-G5GM10x121M5455226717ST0.014
GN613-5-GK5GKM10x121M5455226717ST0.017
GN613-6-A6AM12x1,525M654.562610924ST0.029
GN613-6-AK6AKM12x1,525M654.562610924ST0.034
GN613-6-G6GM12x1,525M654.562610924ST0.02
GN613-6-GK6GKM12x1,525M654.562610924ST0.027
GN613-8-A8AM16x1,531M869834121130ST0.062
GN613-8-AK8AKM16x1,531M869834121130ST0.08
GN613-8-G8GM16x1,531M869834121130ST0.04
GN613-8-GK8GKM16x1,531M869834121130ST0.064
GN613-10-A10AM20x1,531M8801043121945ST0.092
GN613-10-AK10AKM20x1,531M8801043121945ST0.135
GN613-10-G10GM20x1,531M8801043121945ST0.086
GN613-10-GK10GKM20x1,531M8801043121945ST0.121
#75848.99~75851.85#


Also available in stainless steel GN613 with either a plastic or stainless steel knob.
