GN618 Indexing Plunger without Thread, Steel, Plastic Knob

CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Type A - with knob

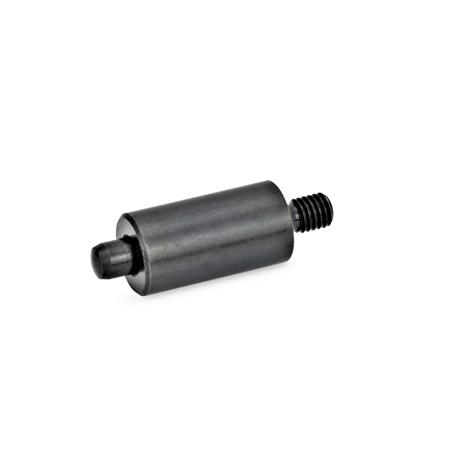

Type G - with threaded rod

CAD Viewer Technical Data

Product Description

GN 618 Indexing Plunger without Thread, Steel, Plastic Knob

Indexing plungers GN618 without thread are for applications where welding or resin bonding (Loctite) or clamping is favoured.

Type G with threaded plunger end are for applications where a special knob to customers' own design is required or other instance where the standard knob is not required.

When being in the end position (spring is "on block") the indexing plungers are constructed in such a way that axial loads can also be absorbed. For applications, however, where the loads applied through the operator via knob are higher (Type G) additional information can be submitted on request.

Specification

Steel, welding quality, blackened.

Plunger - hardened.

Knob - Plastic, Technopolymer (Polyamide PA), black matt finish, not removable.
