Position Indicators
Standard Parts for Clamping & Operating & Machine Fixtures > Position Indicators, Indexing Mechanisms & Control Knobs > Position Indicators Analog/Digital
< Previous Product Next Product >

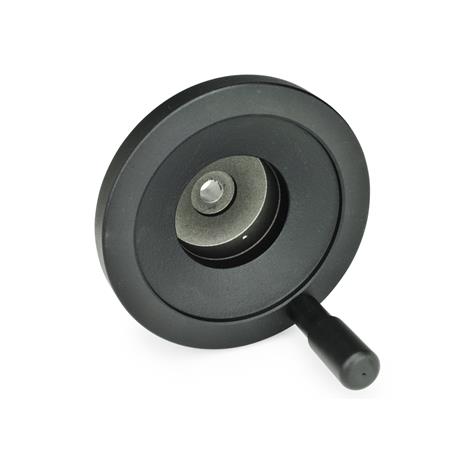

GN323.9 Disc Handwheel, for Position Indicators GN000.9 / GN000.13


Bore Code B - without keyway

Bore Code K - with keyway

Type A - without handle

Type R - with revolving handle

Select Values to Buy:

Tech Spec:


GN 323.9 Disc Handwheels for Position Indicators GN000.9 / GN000.13.

Disc handwheels GN 323.9 have a cleverly designed recessed hub to accept position indicators GN000.9 /GN000.13.

The pallet pin is screwed in and held in position with a hexagon locknut.The length of the pallet pin l5 can be adjusted as required.

Position indicators GN000.9 / GN000.13 are to be ordered separately.


Aluminum - gravity die casting

Hub - machined

Rim - turned on all sides, concentric and square to bore IT 12

Wheel body - plastic coated, black, textured finish

Gear wheel - Plastic (Polyamide PA), glassfibre reinforced

Screw for pallet pin - steel, blackened, injected


Position indicators GN000.9 / GN000.13 are to be ordered separately.

RoHS compliant
