GN717 Indexing Plunger, Steel, Lifting Ring or Wire Loop, Without Rest Position

CloseNextPrevious



CloseNextPrevious

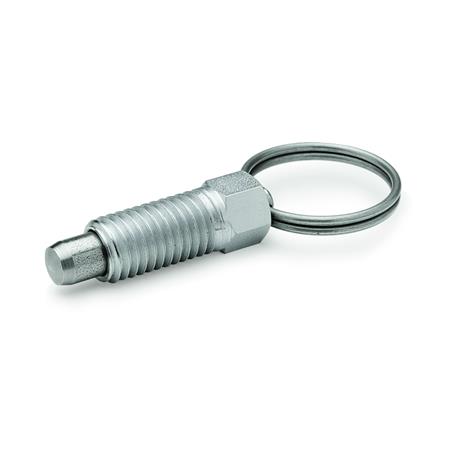

GN717: Indexing Plunger - Type: A -
with Lifting Ring, without Locknut



CloseNextPrevious

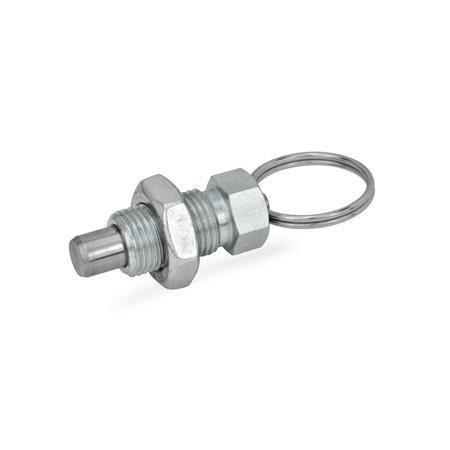

GN717: Indexing Plunger - Type: AK -
with Lifting Ring, with Locknut



CloseNextPrevious

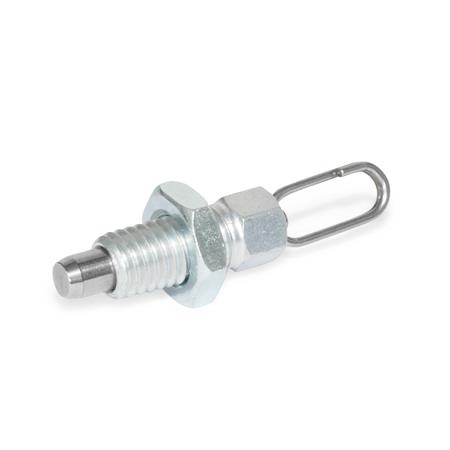

GN717: Indexing Plunger - Type: DK -
with Wire Loop, with Locknut



CloseNextPrevious

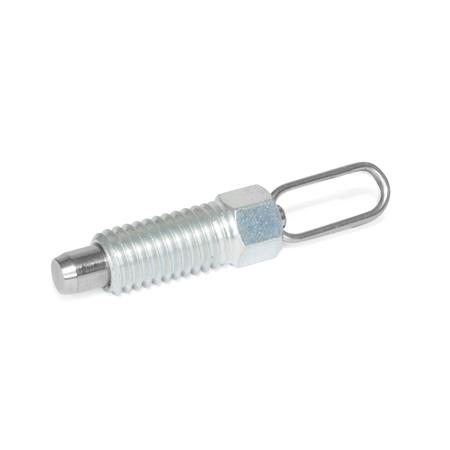

GN717: Indexing Plunger - Type: D -
with Wire Loop, without Locknut



CAD Viewer Technical Data

Series Selector

Options

Type A - with lifting ring, without locknut

Type AK - with lifting ring, with locknut

Type D - with wire loop, without locknut

Type DK - with wire loop, with locknut

CAD Viewer Technical Data

Product Description

GN717 Indexing Plunger, Light Load, Steel, Optional Rest Position

This range of low cost indexing plungers have small dimensions. GN 717 represent excellent value for money. These versatile plungers make many jobs easier, faster and more efficient and are ideal for prevention of misalignments and positioning errors of the mating indexing bores. They are available with either a steel lifting ring or a plastic knob - GN717.

During assembly, the maximum tightening torques shown in the table should not be exceeded when securing the lock nut.

Specification

Threaded body - Steel ST, zinc plated, blue passivated

Plunger - Stainless Steel NI, AISI 303

Spring - Stainless Steel NI, AISI 301

Lifting Ring / Wire Loop - Stainless Steel NI, AISI 301
