GN335 Oval Tubular Handles with Inclined Handle Profile
CloseNextPreviousGN335: Oval Tubular Handle - Type: A
Finish: EL - Anodized, Natural Colour

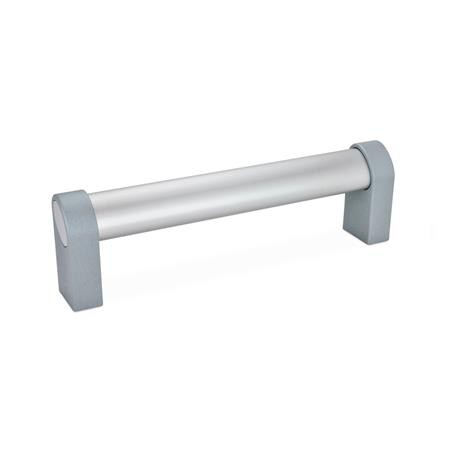

CloseNextPreviousGN335: Oval Tubular Handle - Type: A
Finish: ES - Anodized, Natural Colour

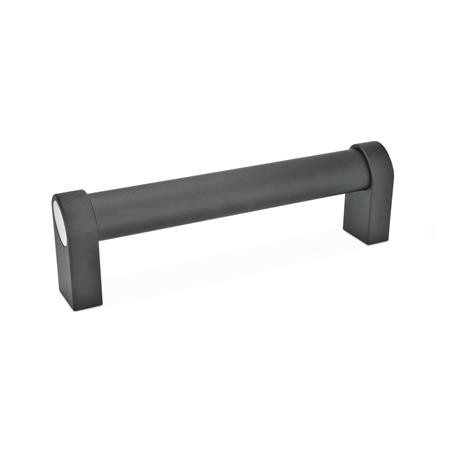

CloseNextPreviousGN335: Oval Tubular Handle - Type: A
Finish: SW - Black, Textured Finish

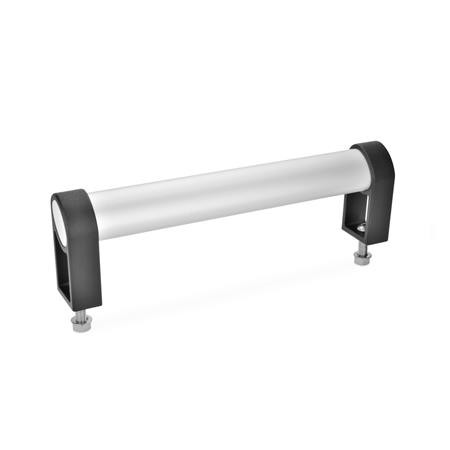

CloseNextPreviousGN335: Oval Tubular Handle - Type: B
Finish: EL - Anodized, Natural Colour

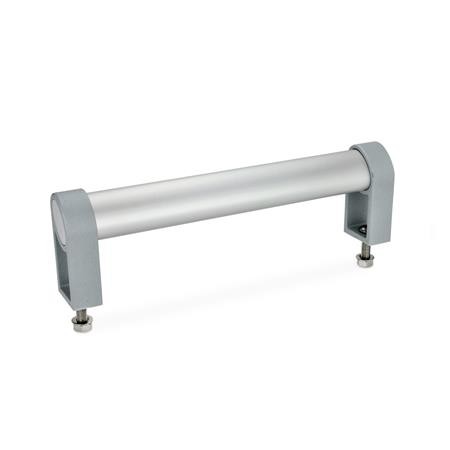

CloseNextPreviousGN335: Oval Tubular Handle - Type: B
Finish: ES - Anodized, Natural Colour

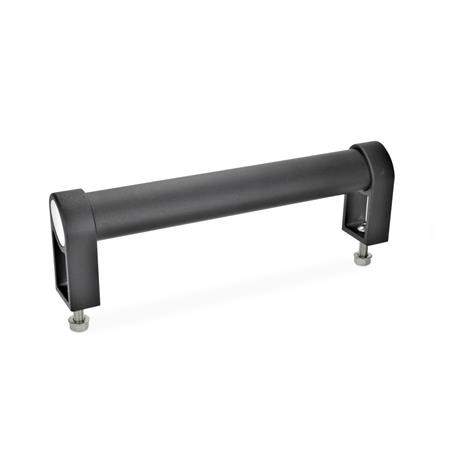

CloseNextPreviousGN335: Oval Tubular Handle - Type: B
Finish: SW - Black, Textured Finish
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type A - Mounting from the back (threaded blind bore)
Type B - Mounting from the operator's side
Product Description
GN335 Oval Tubular Handles with Inclined Handle Profile
GN 335 oval tubular handles have an inclined handle profile with a 45° angle. These handles are comfortable and ergonomic to grasp in various applications, such as sliding doors.
For type B, socket button head screws, hexagon nuts and washers are included in the order.
The tubular handle can be screwed onto the handle shanks without further modification. This allows special lengths to be ordered even in small quantities.
Specification
- Tube - Aluminium, powder coated, black, RAL 9005, textured finish SW. Handle legs - Zinc die casting, powder coated, black, RAL 9005, textured finish.
- Tube - Aluminium, anodized, natural colour EL. Handle legs - Zinc die casting, powder coated, black, RAL 9005, textured finish.
- Tube - Aluminium, anodized, natural colour ES. Handle legs - Zinc die casting, powder coated, silver, RAL 9006, textured finish.
- Cover - plastic, light grey.
CAD Viewer
Technical Data
