GN875
Swing Clamps, Pneumatic, in Block Version
Please select desired options to reveal part number, price and availability
Options
Contact Type T - for T-groove cylinder
Connection Type S - Plug
Product Description

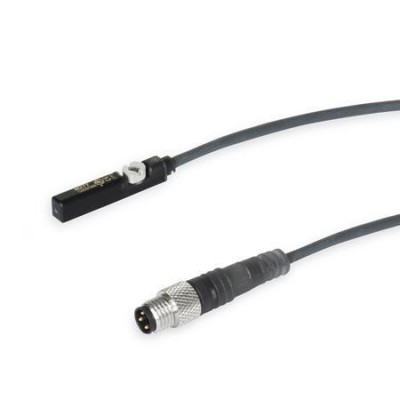

GN3380 Sensor, for Pneumatically Operated Clamps & Cylinders
Sensors for pneumatically operated clamps and cylinders, GN 3380, detect the piston position of pneumatic cylinders with magnetic pistons. Cylinders installed in pneumatic clamps enable the position detection of the clamp itself by means of this sensor.
Upon reaching the switch point, the sensor electronics deliver a signal, for instance to a machine controller, and also indicates this switch state via the integrated LED.
For installation, the sensor is inserted into the cylinder groove from above. The side retaining ribs prevent it from falling out. A quarter turn of the fastening screw quickly and reliably locks the sensor into place in the groove.
Specification
Housing - Plastic
Cable (Outer sheath) - Polyurethan PUR, black
Plug - Plastic, 3-pole
Knurled screw connection - Brass, nickel plated, freely rotating
Temperature range: -30 °C to +80 °C
Protection class IP 65, IP 67
