Please select desired options to reveal part number, price and availability
Options
Type A - Without rubber underlay
Type G - With rubber underlay
Product Description

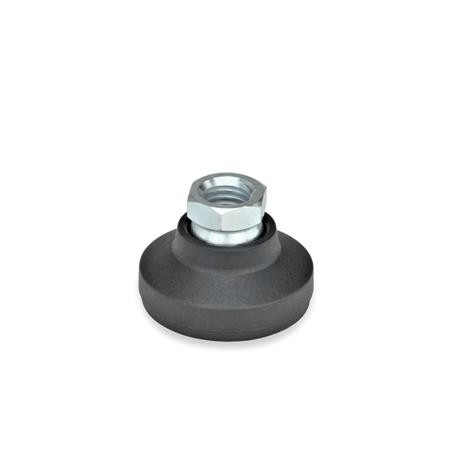

GN343.3 Levelling Foot, Plastic, Threaded Bush, Anti Slip
These levelling feet are ideal for levelling and stabilising of equipment and machinery.
Levelling feet GN 343.3 are capable of withstanding high static loads through the use of a high density plastic material coupled with a design which distributes the load over a larger area.
Exceeding the static values specified in the above table could lead to failure of the plastic component.
The above values have been arrived at by a series of load tests whereby a defined number of levelling feet were subjected to a vertical load over a defined period.
Depending on the application and load a safety margin has to be taken into account to ensure that the load is less than the permitted values given in the table. We cannot, however entertain any claims for damage caused by the use of these levelling feet.
Specification
Foot - Plastic Technopolymer (Polyamide PA) glass fibre reinforced, black, matt, restistant to oil, grease solutions and chemicals.
Threaded stud - Steel ST, Tensile strength 500 N/mm2 zinc plated, blue passivated.
Hexagon nut - ISO4032 Steel zinc plated, blue passivated.
Rubber underlay - NBR (PERBUNAN) 70 Shore hardness, black.
CAD Viewer
Technical Data
