GN353 Rubber Buffer, Dome with Internal Steel Thread or Screw
Choose your Part
Please select desired options to reveal part number, price and availability
Options

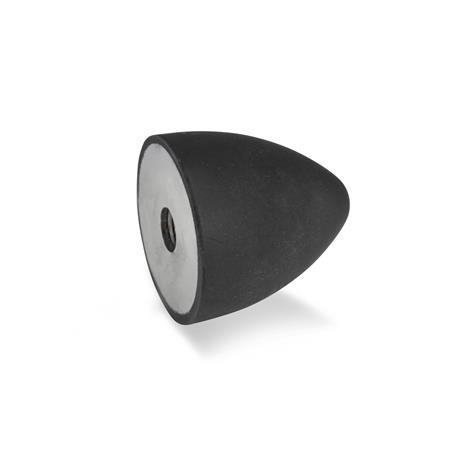

Type E - with internal thread

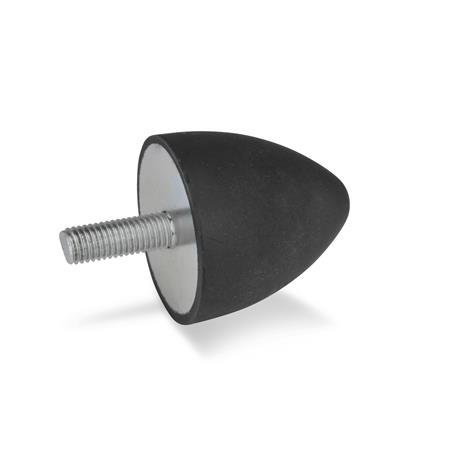

Type S - with threaded stud
Product Description
GN353 Buffer, Dome, Steel with Internal Thread or Screw
Buffers GN 353 are used as end stops.
They absorb impact energy during collisions, prevent damage due to heavy vibrations and minimize rebound. They also reduce noise and harmful vibration.
The parabolic shape results in an increasing spring rate for particularly gentle damping of impacts.
Specification
Natural rubber (NR), black, vulcanised to the cover plates, operating temperature -40 degrees C to +80 degrees C
- Hardness Shore A ±5
- soft 40
- medium 55
- hard 70
- Cover plates / threaded bushings / threaded studs - Steel, zinc-plated, blue passivated.
On Request
Rubber in grey
