Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Indexing Plungers
< Previous Product Next Product >

GN412.1 Mounting Block, Zinc Die Casting





Identification 1 - Mounting from the front

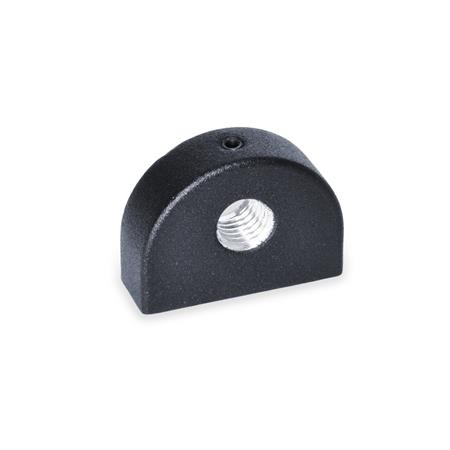

Identification 2 - Mounting from the back

Select Values to Buy:

Tech Spec:



GN412.1 Mounting Block, Zinc Die Casting

These mounting blocks broaden the mounting possibilities and are an added feature for the cam action indexing plungers GN612, GN712 and GN712.1.

Positioning bushings are also available: GN412.3

Specification

Zinc die casting

Plastic coated - black, matt.

RoHS compliant

Select / Deselect Visible Columns
PartCodel1d1Id. No.bd2d3d4d5hkl2st1t2MaterialMass

GN412.1-35-M8-16M81354.3M48.2262514122ZD0.04
GN412.1-35-M8-2M8235M4M52625141210ZD0.048
GN412.1-35-M8X1-16M8x11354.3M48.2262514122ZD0.039
GN412.1-35-M8X1-2M8x1235M4M52625141210ZD0.048
GN412.1-35-M10-16M101354.3M410.2262514122ZD0.038
GN412.1-35-M10-2M10235M4M52625141210ZD0.046
GN412.1-35-M10X1-16M10x11354.3M410.2262514122ZD0.039
GN412.1-35-M10X1-2M10x1235M4M52625141210ZD0.046
GN412.1-35-M12-16M121354.3M412.2262514123ZD0.035
GN412.1-35-M12-2M12235M4M52625141212ZD0.044
GN412.1-47-M16-110M161475.3M516.2343518143ZD0.076
GN412.1-47-M16-2M16247M5M63435181412ZD0.09
GN412.1-35-M12X1,5-20.044
GN412.1-47-M16X1,5-20.07
GN412.1-47-M20X1,5-20.079
GN412.1-47-M16X1,5-10.071
GN412.1-35-M12X1,5-10.037
GN412.1-47-M20X1,5-10.068
