GN422 Cabinet U Handles, Power Switching Function & Cable

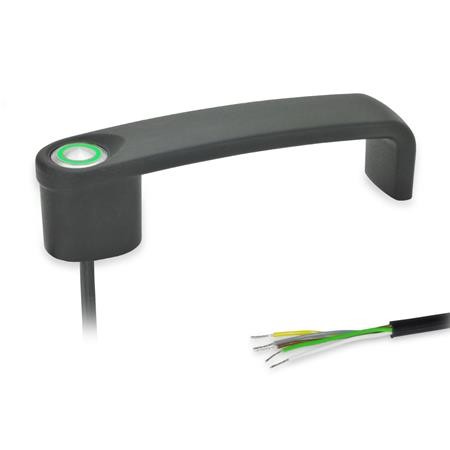

CloseNextPreviousGN422: Cabinet U Handle - Type: T1
Finish: SW - Black, Textured Finish

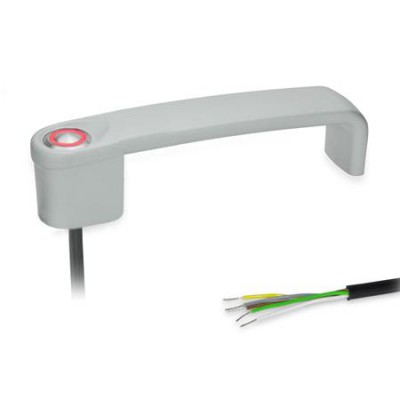

CloseNextPreviousGN422: Cabinet U Handle - Type: T1
Finish: SR - Silver, Textured Finish

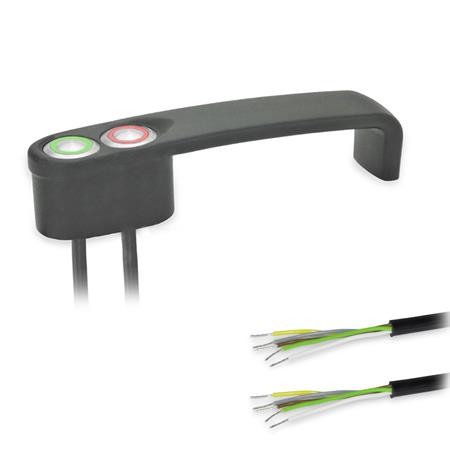

CloseNextPreviousGN422: Cabinet U Handle - Type: T2
Finish: SW - Black, Textured Finish

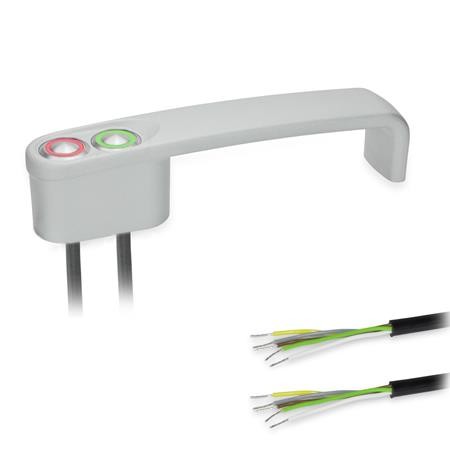

CloseNextPreviousGN422: Cabinet U Handle - Type: T2
Finish: SR - Silver, Textured Finish
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type T1 - with 1 button
Type T2 - with 2 buttons
Connection type K - Cable
Product Description
GN422 Cabinet U Handles with Power Switching Function and Cable
GN 422 cabinet U handles come with one or two push buttons. Each button has a changeover switch and integrated LED ring lighting.
When the button is pressed, an electrical control impulse to switch off a machine, for example, can be triggered based on the wiring of the contacts (NC or NO). Regardless of whether the button is actuated, the integrated LED ring lighting shines red or green depending on the polarity of connections 1 and 2.
The cabinet U handle is functional, highly compact, and can be used for any application due to its universal design.
Specification
- Handle - Zinc die casting ZD, powder coated.
- Black, RAL 9005, textured finish SW.
- Silver, RAL 9006, textured finish SR.
- Button - Stainless Steel AISI 304.
- Cable (Outer sheath) - Polyurethane PUR, black.
CAD Viewer
Technical Data
