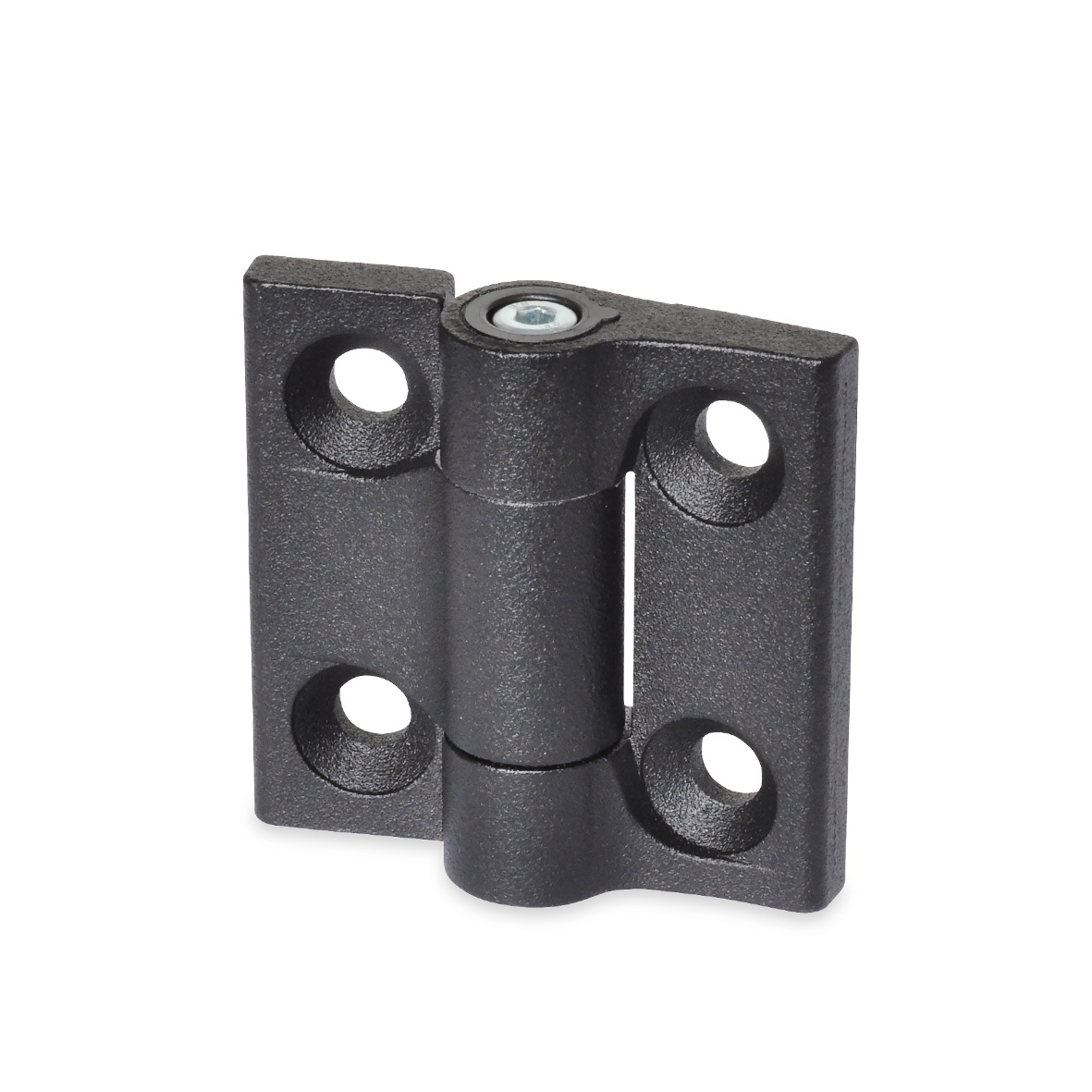

GN437 Hinge, Zinc Die Cast, with Adjustable Friction

Select Values to Buy:

Tech Spec:



GN437 Hinge, Zinc Die Cast, with Adjustable Friction

The set screw fitted to these hinges allows the mobility of the hinge to be changed, giving a constant and adjustable braking torque across the whole of the hinged range. The swivel motion of doors and traps is inhibited and inadvertent motion and slamming is prevented.

The friction torque is accomplished by two slim friction cones being braced against each other. Another effect of this type of hinge is that there is no play in axial or radial direction of the hinge. The large friction surface and the low-wear synthetic material of the friction cone guarantee a long service life with virtually constant friction force and the resulting inertia.

Specification

Zinc die casting - ZD Material, plastic coated, black, RAL 9005, textured finish SW . Silver, RAL 9006, textured finish SR.

Friction cone - Plastic (Polyacetal POM), temperature resistant up to 80°C.

Set screw / Hexagon nut - Steel, zinc plated, blue passivated.

RoHS compliant

Select / Deselect Visible Columns
Close
HideMaterialShow
Hidel1Show
Hidel2Show
HideTypeShow
HideSurfaceShow
HidedShow
Hideh1Show
Hideh2Show
Hideh3Show
Hideh4Show
Hidel3Show
Hidem1Show
Hidem2Show
HideA/FShow
Hidemax. recommended tightening torque of the set screw in NmShow
HideFriction torque in NmShow
PartCodeMateriall1l2TypeSurfacedh1h2h3h4l3m1m2A/Fmax. recommended tightening torque of the set screw in NmFriction torque in NmMass

GN437-ZD-40-40-A-SWZD4040ASW5.313.557141325252.50.520.05
GN437-ZD-40-40-A-SRZD4040ASR5.313.557141325252.50.520.053
GN437-ZD-50-50-A-SWZD5050ASW6.515.5681616.5303030.7540.09
GN437-ZD-50-50-A-SRZD5050ASR6.515.5681616.5303030.7540.091
GN437-ZD-60-60-A-SWZD6060ASW8.318.57.59.51920363641.56.50.161
GN437-ZD-60-60-A-SRZD6060ASR8.318.57.59.51920363641.56.50.161
