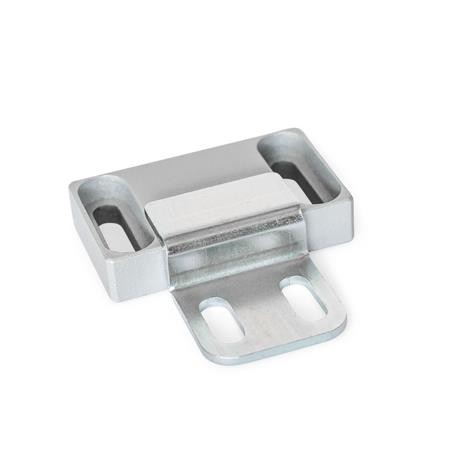

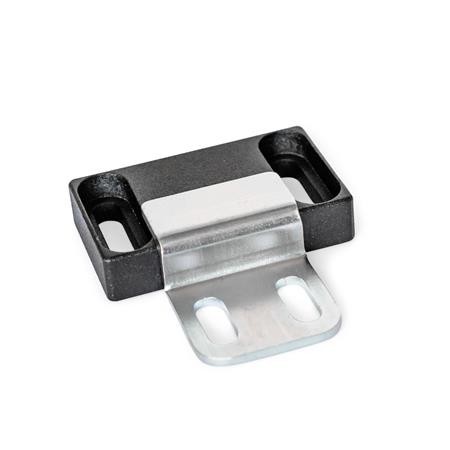

GN4470: Magnetic Catch - Type: C2
Id: L2 - Finish: SW



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A1 - Magnetic surface top, with bore

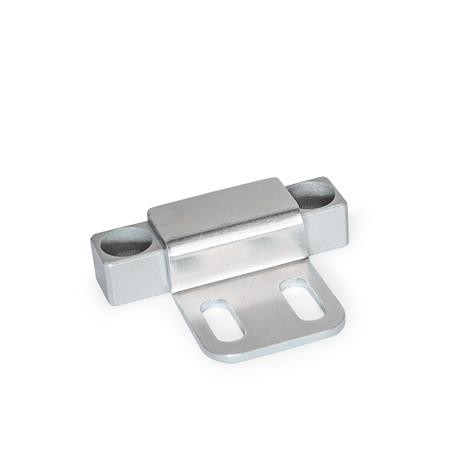

Type A2 - Magnetic surface top, with slotted hole

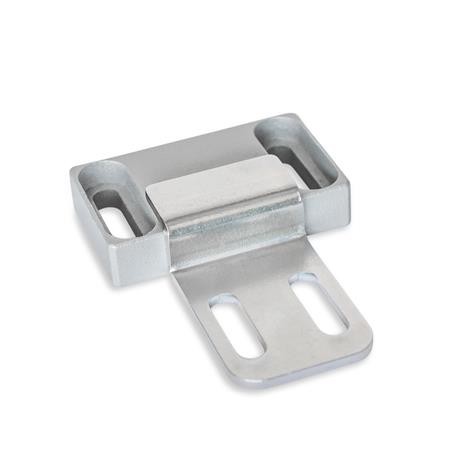

Type C1 - Magnetic surface laterally, with bore

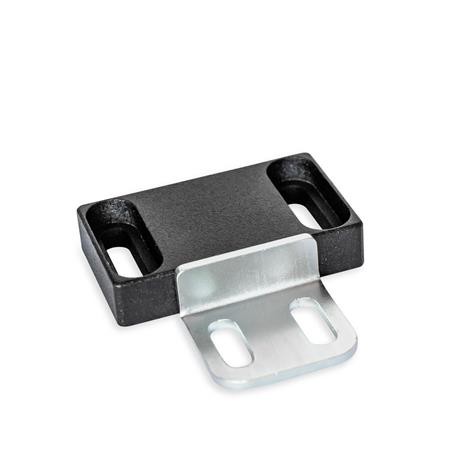

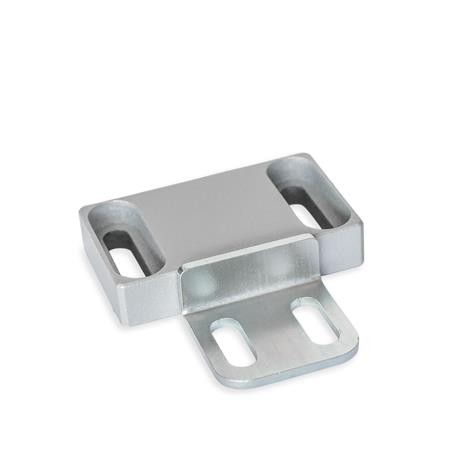

Type C2 - Magnetic surface laterally, with slotted hole

Identification W - without contact plate

Identification F - with contact plate, with countersunk hole

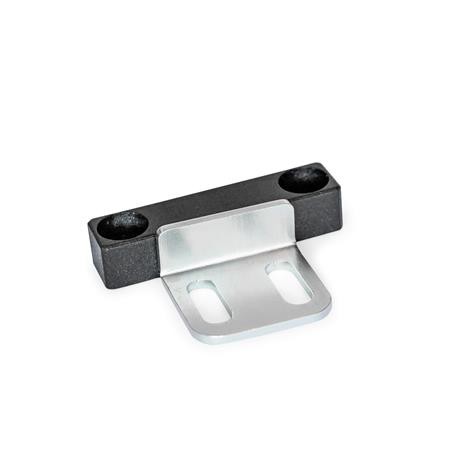

Identification L2 - with contact plate, L-profile, with slotted hole

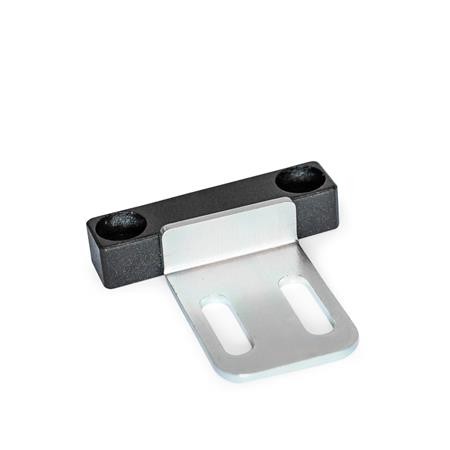

Identification L3 - with contact plate, L-profile, with slotted hole, elongated

Identification Z2 - with contact plate, Z-profile, with slotted hole

Identification Z3 - with contact plate, Z-profile, with slotted hole, elongated

CAD Viewer Technical Data

Product Description

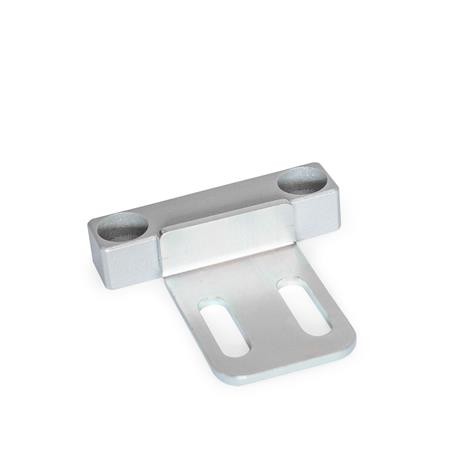

GN4470 Magnetic Catch, with Rubberised Magnetic Surface

Magnetic catches GN 4470 are compact parts that hold covers, doors and sliding doors closed. The rubberised magnetic surface reduces noise and prevents damage to the opposite part.

The contact plates for diverse installation situations expand the possible range of applications and are used, for example, when magnetic catches are desired but the opposite part is non-magnetic.

For magnetic catches of types A1 and A2, full-surface contact in the area of the locking plate must be ensured during installation.

Specification

Zinc die casting, plastic coated - Black, RAL 9005, textured finish SW, Silver, RAL 9006, textured finish SR

Material of the magnet NdFeB - Neodymium, iron, boron, temperature resistant up to 80 °C

Rubber cap (magnetic surface) - Elastomer (TPE), black, Hardness ≈ 80 Shore A

Contact plate - Steel, zinc plated, blue passivated
