GN45 Levelling Feet, Stainless Steel, A4, with Fixing Lug

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type D0 - without rubber underlay

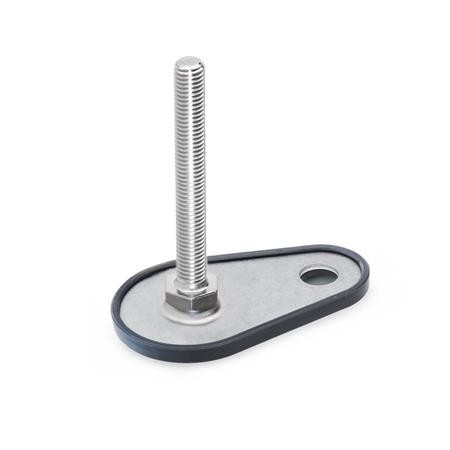

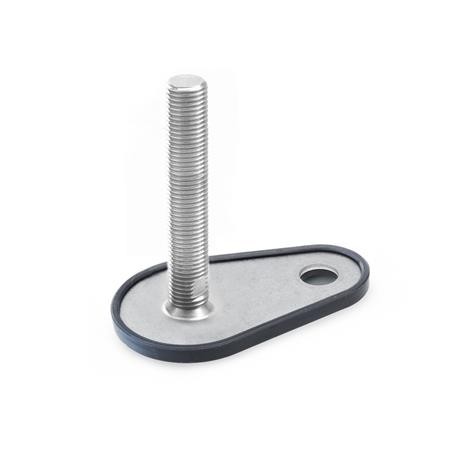

Type D1 -  with rubber underlay, clipped on, black

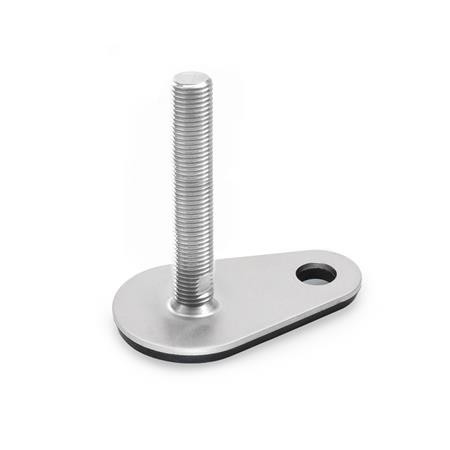

Type D3 - with rubber underlay, vulcanized, black

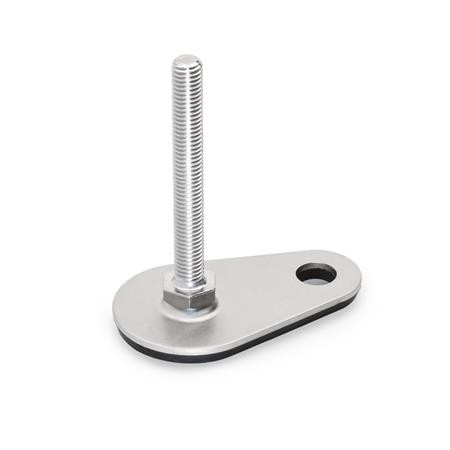

Version S - without nut, external hexagon at the bottom

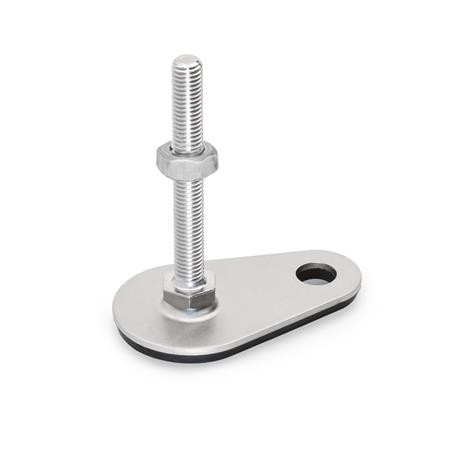

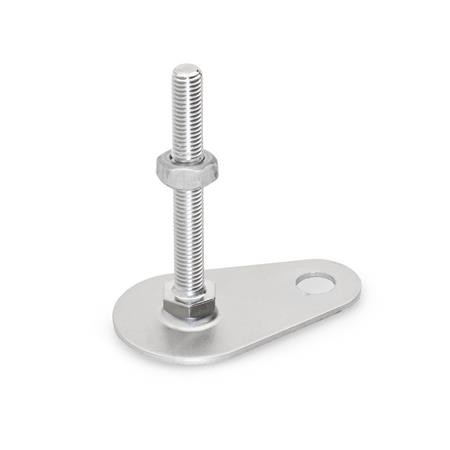

Version SK - with nut, external hexagon at the bottom

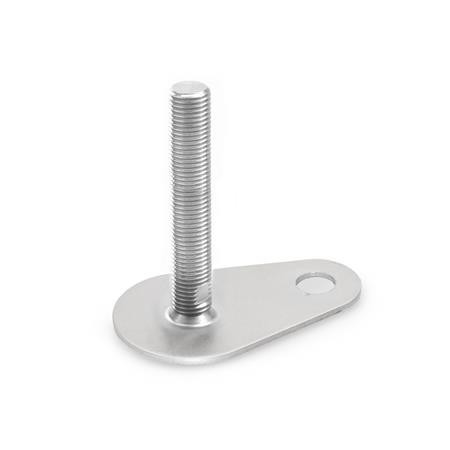

Version T - without nut, wrench flat at the bottom

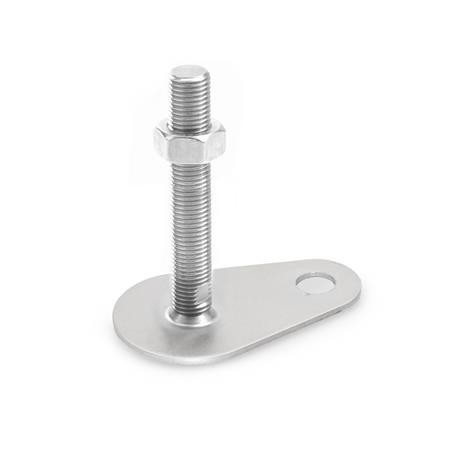

Version TK - with nut, wrench flat at the bottom

Product Description

GN45 Levelling Feet, Stainless Steel, A4, with Fixing Lug, Drop Shape

GN 45 stainless steel levelling feet are ideal for use in aggressive or challenging environments, or when enhanced hygiene levels are necessary. The range of combinations of base plates and adjustable spindle versions allow these levelling feet to be used in every situation.

The levelling feet can be screwed to the mounting surface using the fixing lug, which prevents lateral shifting. The types with a rubber underlay protect sensitive surfaces from scratches or damage.

The levelling feet are supplied fully assembled and are not removable.

Specification

Base plate - Stainless Steel, AISI 316 L (A4), blank, ground

Threaded stem - Stainless Steel AISI 316 L (A4)

Hexagon nut ISO 4032 - Stainless Steel, A4

Rubber cap - clipped on, black, Santoprene® (TPE), ≈ 80 Shore A

Rubber underlay - vulcanized, black, Perbunan® (NBR), 70±5 Shore A
