GN474.3 Parallel Clamp Mountings, With Adjustable Spindle, Aluminium
CloseNextPreviousGN474.3 Parallel Mounting Clamps. Type:K With 2 Hand Levers
Finish: ELS Anodized, black
CloseNextPreviousGN474.3 Parallel Mounting Clamps. Type:K With 2 Hand Levers
Finish: MT Matte, ground
CloseNextPreviousGN474.3 Parallel Mounting Clamps.
Type:S With 4 socket head screwsFinish: ELS Anodized, black
CloseNextPreviousGN474.3 Parallel Mounting Clamps.
Type:S With 4 socket head screws Finish: MT Matte, ground
Choose your Part
Please select desired options to reveal part number, price and availability
Options

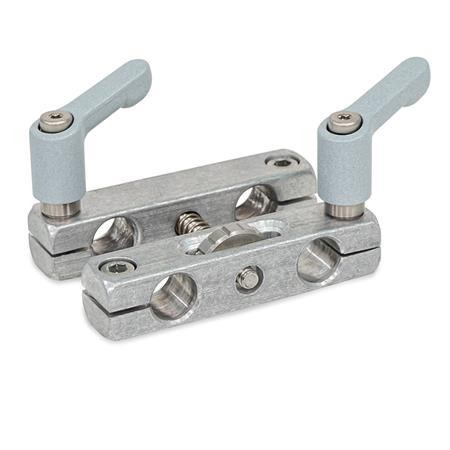

Type K - With two hand levers and two socket cap screws

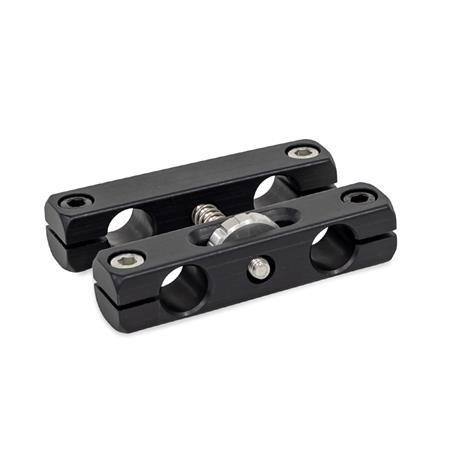

Type S - With four socket cap screws
Finish MT - Matte, ground
Finish ELS - Anodized, black
Product Description
GN474.3 Parallel Clamp Mountings, With Adjustable Spindle, Aluminium
Parallel mounting clamps with adjustable spindle GN 474.3 are used for fine adjustments of measuring or test setups. The parallel clamp can be adjusted in 0.1 mm increments using the coarse scaling on the circumference of the adjusting wheel.
When using Stainless Steel Retaining Rods / Retaining Tubes GN480.1, type LS with longitudinal scale, their scale provides orientation during presetting.
Specification
- Aluminum
- Matt, ground MT.
- Anodized black ELS.
- Adjustable hand levers (Type K)
- Zinc die casting, powder coated, silver RAL 9006, textured finish
- Threaded insert and retaining screw, stainless steel AISI 303
- Thrust washers - plastic
- Socket cap screws DIN912, Stainless steel AISI 304
- 2x chemically blackened (Type S)
- 2x plain finish (Type K / Type S)
- Countersunk screw ISO 14581, stainless steel AISI 304
- Spring, spring steel AISI 301
