GN235 Hinge, Stainless Steel, Adjustable

CloseNextPrevious



CloseNextPrevious

GN235: Hinge - Type: DB -
Through-holes, Horizontally Adjustable



CloseNextPrevious

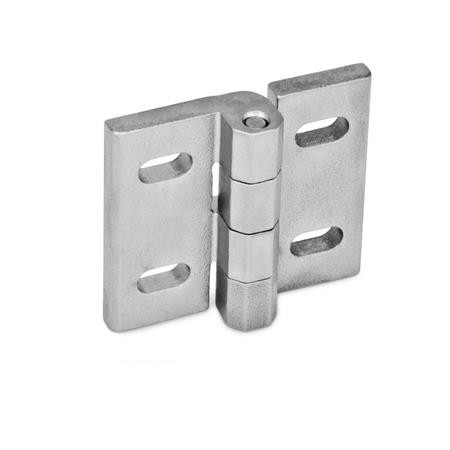

GN235: Hinge
Type: B - Horizontally Adjustable



CloseNextPrevious

GN235: Hinge - Type: DH -
with Through-holes, Vertically Adjustable



CloseNextPrevious

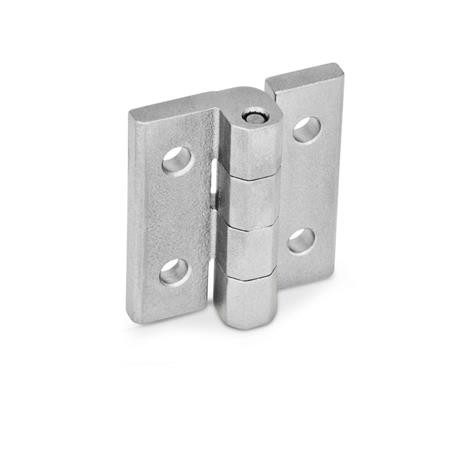

GN235: Hinge
Type: D - with Through-holes



CloseNextPrevious

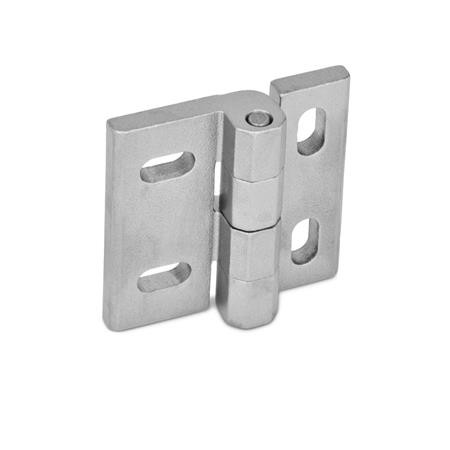

GN235: Hinge - Type: HB -
Vertically and Horizontally Adjustable



CloseNextPrevious

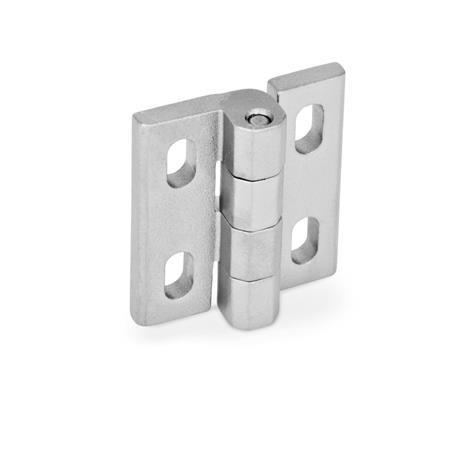

GN235: Hinge
Type: H - Horizontally Adjustable



CAD Viewer Technical Data

Series Selector

CAD Viewer Technical Data

Product Description

Hinges GN 235 are adjustable in height or width along the slots, depending on the design, and are fastened with hex-head, oval-head or cylinder screws with a low head. Thanks to sufficient space (installation space) available for screw heads and washers, the hinges can be opened by 180° without collision. The hinge drill pattern corresponds with that of the GN 237 hinge family, which allows the hinges to be exchangeable.



Specification

Stainless Steel NI

AISI CF-8 - matte shot-blasted GS

Pin - Stainless Steel AISI 316Ti

Accessory

Stainless Steel-Spacer plates GN2370

Stainless Steel-Plates with tapped holes GN2372
