GN235 Hinge, Zinc Die Casting, Adjustable

CloseNextPrevious



CloseNextPrevious

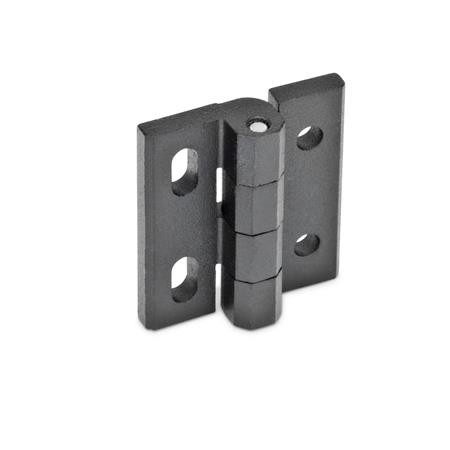

GN235: Hinge - Type: B
Finish: SR - Silver, Textured Finish



CloseNextPrevious

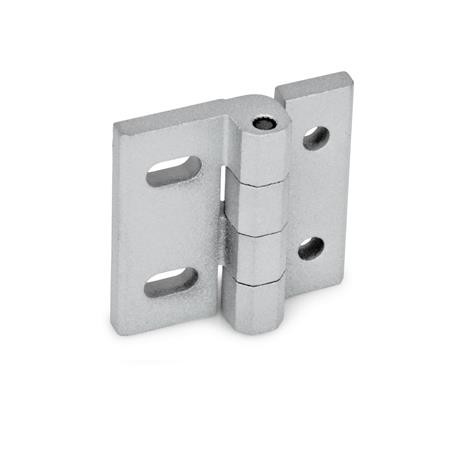

GN235: Hinge - Type: B
Finish: SW - Black, Textured Finish



CloseNextPrevious

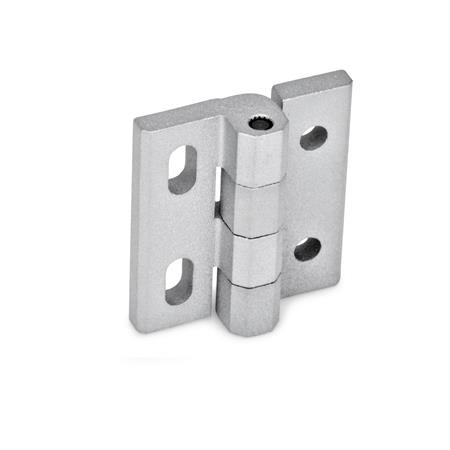

GN235: Hinge - Type: DB
Finish: SR - Silver, Textured Finish



CloseNextPrevious

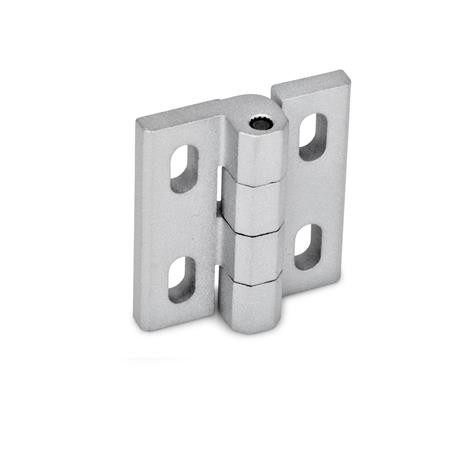

GN235: Hinge - Type: DB
Finish: SW - Black, Textured Finish



CloseNextPrevious

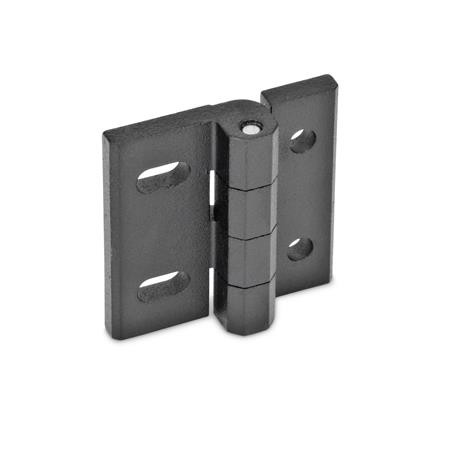

GN235: Hinge - Type: DH
Finish: SR - Silver, Textured Finish



CloseNextPrevious

GN235: Hinge - Type: DH
Finish: SW - Black, Textured Finish



CloseNextPrevious

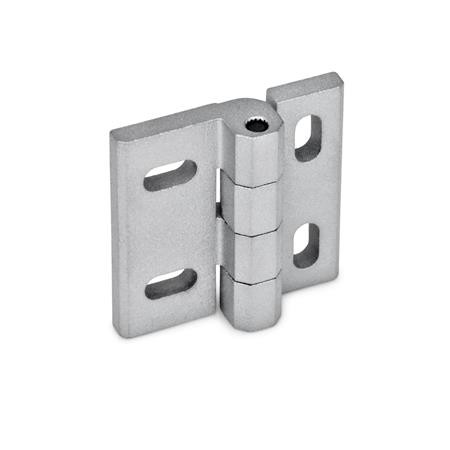

GN235: Hinge - Type: D
Finish: SR - Silver, Textured Finish



CloseNextPrevious

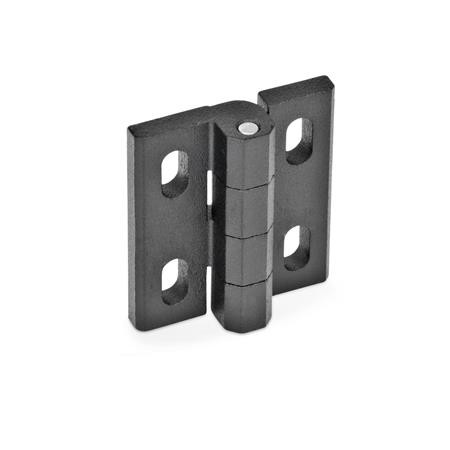

GN235: Hinge - Type: D
Finish: SW - Black, Textured Finish



CloseNextPrevious

GN235: Hinge - Type: HB
Finish: SR - Silver, Textured Finish



CloseNextPrevious

GN235: Hinge - Type: HB
Finish: SW - Black, Textured Finish



CloseNextPrevious

GN235: Hinge - Type: H
Finish: SR - Silver, Textured Finish



CloseNextPrevious

GN235: Hinge - Type: H
Finish: SW - Black, Textured Finish



CAD Viewer Technical Data

Series Selector

CAD Viewer Technical Data

Product Description

Hinges GN 235 are adjustable in height or width along the slots, depending on the design, and are fastened with hex-head, oval-head or cylinder screws with a low head. Thanks to sufficient space (installation space) available for screw heads and washers, the hinges can be opened by 180° without collision. The hinge drill pattern corresponds with that of the GN 237 hinge family, which allows the hinges to be exchangeable.



Specification

Zinc die casting ZDplastic coated
black SW RAL 9005 textured finish
silver SR RAL 9006 textured finish

Pin - Stainless Steel AISI 316T

Accessory

Stainless Steel-Spacer plates GN2370

Stainless Steel-Plates with tapped holes GN2372
