GN509.5 Ball Transfer Unit, Housing Steel / Stainless Steel, with Threaded Stud
CloseNextPreviousGN509.5 Ball Transfer Unit
Housing Material N, Ball Material NI Type A
CloseNextPreviousGN509.5 Ball Transfer Unit

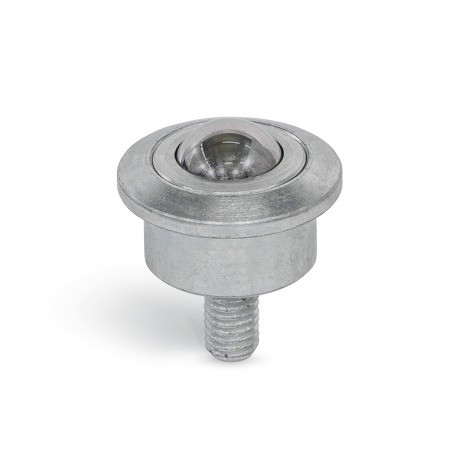

Housing Material N, Ball Material NI Type B
CloseNextPreviousGN509.5 Ball Transfer Unit

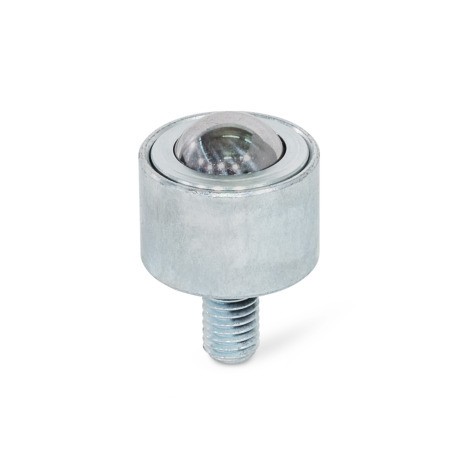

Housing Material S, Ball Material BL Type A
CloseNextPreviousGN509.5 Ball Transfer Unit
Housing Material S, Ball Material BL Type B
CloseNextPreviousGN509.5 Ball Transfer Unit

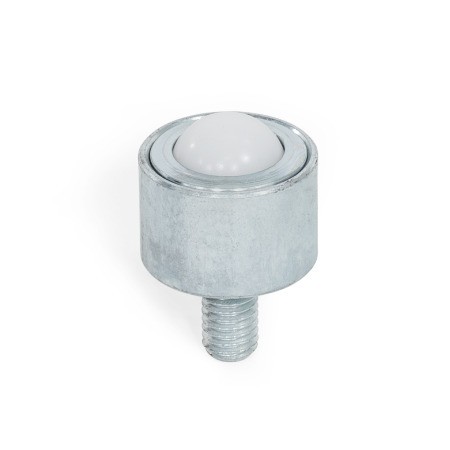

Housing Material S, Ball Material KU Type A
CloseNextPreviousGN509.5 Ball Transfer Unit
Housing Material S, Ball Material KU Type B
CloseNextPreviousGN509.5 Ball Transfer Unit
Housing Material S, Ball Material NI Type A
CloseNextPreviousGN509.5 Ball Transfer Unit

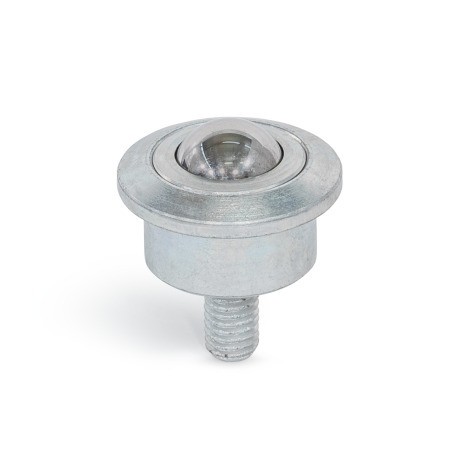

Housing Material S, Ball Material NI Type B
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type A - Cylindrical
Type B - With collar - only available in size 15
Product Description
GN509.5 Ball Transfer Unit, Housing Steel / Stainless Steel, with Threaded Stud
Ball transfer units GN 509.5 are used in machine and fixture construction, for example, to move heavy loads in any direction without great effort. The roller bearing of the ball ensures reliable operation and a long service life.
The ball transfer units feature a threaded stud on the bottom for fastening. The load is transferred via the housing base for type A and via the housing collar for type B.
Specification
- Housing
- Steel, turned S, zinc plated, blue passivated
- Stainless steel AISI 420C, turned, NI
- Load ball
- For steel housing
- Steel, plain finish, BL
- Plastic, polyacetal (POM) KU
- Stainless steel AISI 420C NI
- For stainless steel housing
- Stainless steel AISI 420C NI
- Bearing balls
- Steel, plain finish for load ball / KU
- Stainless steel AISI 420C for load ball NI
CAD Viewer
Technical Data
