GN541 Oil Level Sight Glass, Crystal Clear Plastic, High Strength

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - with reflector.

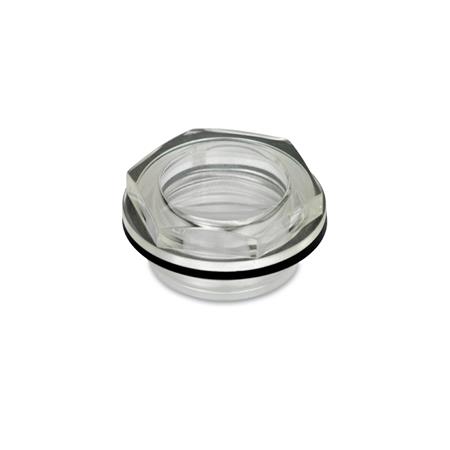

Type B - without reflector.

Product Description

GN541 Oil Level Sight Glass

These oil level sight glasses GN 541 have very high mechanical strength, practically indestructible even at high torque. This allows them to be relatively thin walled while offering a large viewing window.

These oil level sight glasses can also be used in tanks which are pressurised. The max permissible pressure is dependent on the tank size operating conditions (i.e. temperature). Test results are available.

Installation Instructions

For mounting on walls of less than 4mm thickness please use a fixing nut GN7430

Specification

• Plastic - Crystal-clear Polyamid (PA 6-T), ageing resistant, high mechanical strength, temperature resistant up to 100°C, solvent resistant, not suitable for alcohol.
• Rubber seal - NBR (Perbunan)
• Reflector - Aluminium, natural colour, anodised.
