Product Description

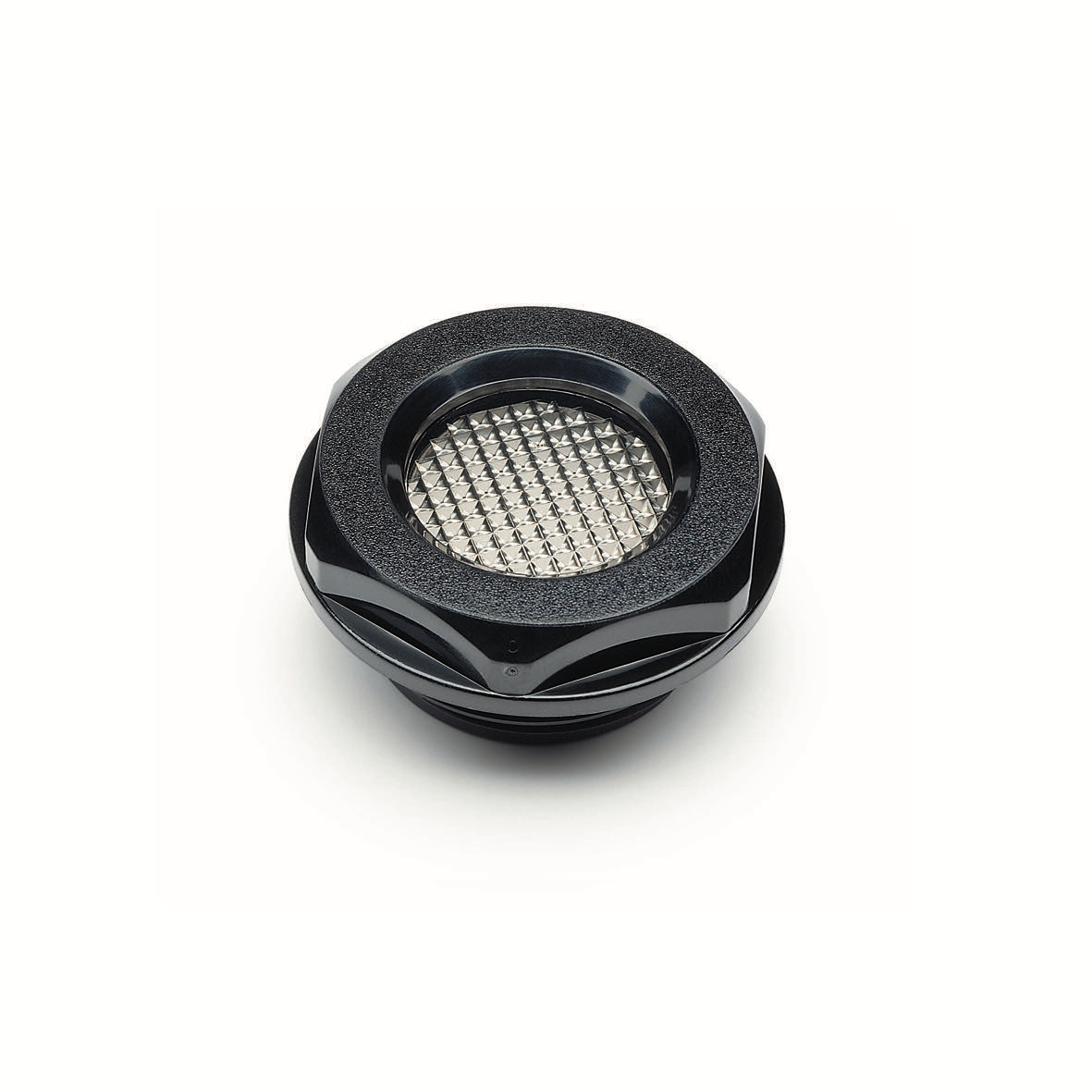

GN543.3 Prismatic Oil Sight Glasses, Plastic, Temperature Resistant to 100° C
The window of these prismatic oil sight glasses, GN 543.3 is embedded in the body during the injection process and it is therefore absolutely leaktight.
These oil sight glasses use the prismatic effect of a cat’s eye to give a clear and unmistakable oil level reading irrespective of oil color or viscosity. The advantage of these effects becomes obvious in case of a total underfilling or overfilling and monitoring the situation under unfavourable conditions.
The sealing ring is embedded in a radial undercut and it cannot be extruded during the tightening operation.
Assembly Instruction:
For mounting on walls of less than 4 mm thickness please use a mounting nuts GN7430.
Specification
Body - Plastic (Polyamide PA), black, matte finish, temperature resistant up to 100 °C, pressure resistant up to 3 bar
Sight glass - Plastic, crystal clear polyamide (PA 6-T)
Seal - Rubber NBR (Perbunan®)
Accessory
Mounting Nuts GN7430
