Please select desired options to reveal part number, price and availability
Options
Type L - Steel, standard spring load

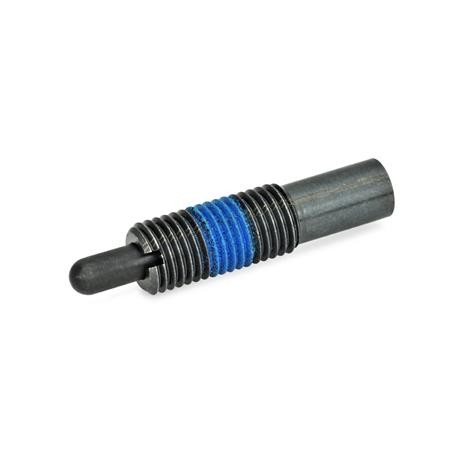

Type LS - Steel, high spring load
Type LN - Stainless steel, standard spring load
Type LSN - Stainless steel, standard spring load
Product Description
GN611 Spring Plunger, Long Version, Blackened
Spring plungers GN 611 are used as ejectors, for push-on and push-off operations in the sheet metal industry, as well as cushioners.
The slot on the plunger side is provided for blind hole application. A special screwdriver GN611.5 is available, see table for correct code.
Specification
Type L/LS
Housing - Steel, blackened
Bolt - Steel, blackened, case hardened.
Type LN/LSN
Housing - Stainless steel AISI 303
Bolt - Stainless steel AISI 303, nitrided
Pressure spring - Steel
As identification for the higher spring load (type LS/LSN), the housing has 2 longitudinal markings.
