GN613 Indexing Plunger, Stainless Steel, with Plastic Knob

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - without lock nut, with knob

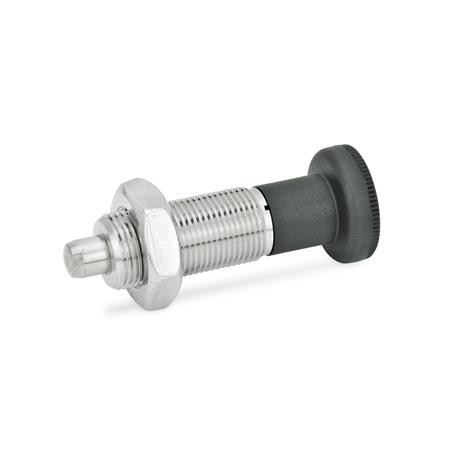

Type AK - with lock nut, with lifting knob

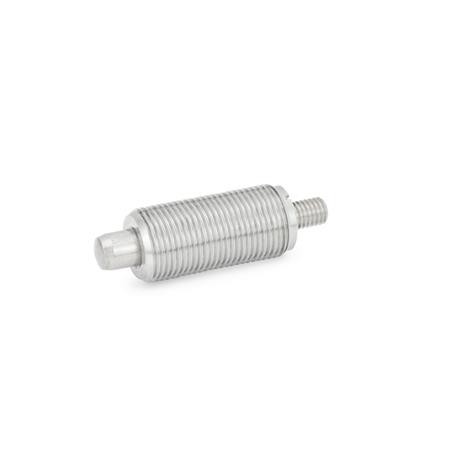

Type G - without lock nut, with threaded rod

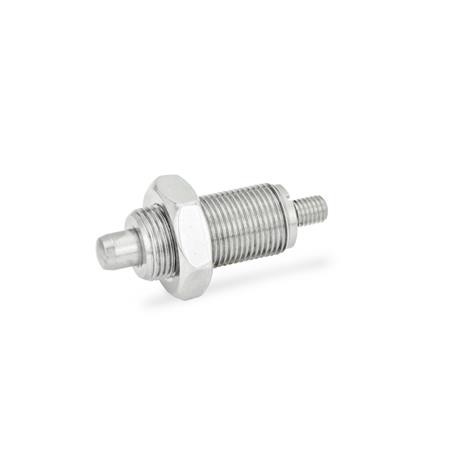

Type GK - with lock nut, with threaded rod

Product Description

GN613 Indexing Plunger, Stainless Steel, with Plastic Knob

Type G or GK of these indexing plungers have been designed for applications where the indexing plunger is not operated with the standard knob.

These indexing plungers are designed so that the plunger set in the end position (spring is "on block") can also absorb axial forces. For applications in which these forces are substantially above the tensile force applied by the operator (Type G), GN817 indexing plungers are to be preferred.

A special mounting tool, GN613.1 (available as accessory) shortens the assembly time and makes it easier to hold the mechanism in place while fixing the lock nut. The screw driver is inserted in the side between the knob and guide, where it engages the slot in the guide.

Specification

• Stainless Steel NI AISI 303, plunger pin chemically nickel plated
• Knob - Plastic, (Polyamide PA), black, matte finish, not removable

Accessory

Mounting tools GN613.1
