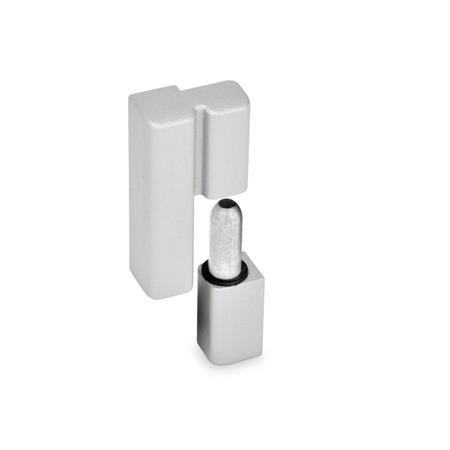

Type R - fixed bearing (pin) right

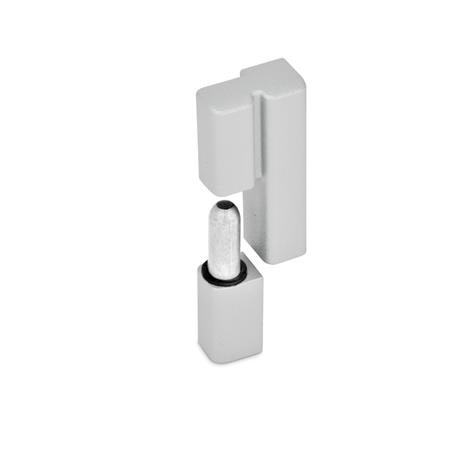

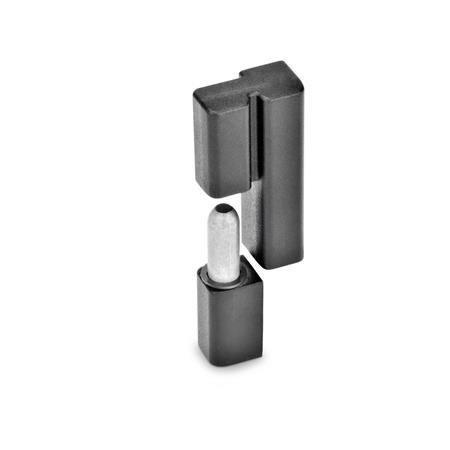

Type L - fixed bearing (pin) left
GN161.2 Hinge, Zinc Die Cast, Plastic Coated, Slim
Hinges GN 161.2 have a highly attractive design due to fixing screws with are not visible.
During the load tests, the hinges were gradually loaded and relieved at room temperature with incrementally increasing force. For the specified values, an insignificant permanent deformation remained after relieving the load which had no effect on the function and appearance. In most cases, the failure loads are multiples of the specified value.
The details relating to the load bearing capacity are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use. Environmental influences and aging may influence these values.
Zinc die casting - plastic coated. Black, RAL 9005, textured finish SW. Silver, RAL 9006, textured finish SR
