GN615.1 Spring Plungers, with Bolt and Slot, Steel or Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type B - Steel, standard spring load

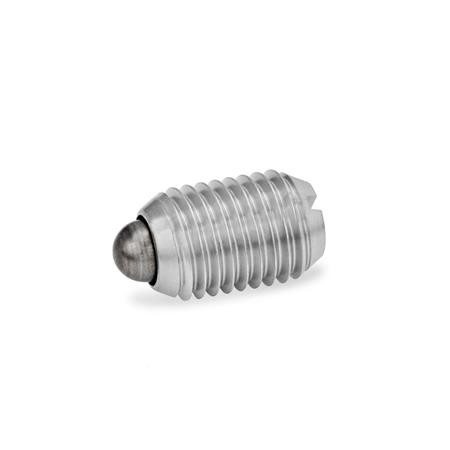

Type BN - Stainless Steel, standard spring load

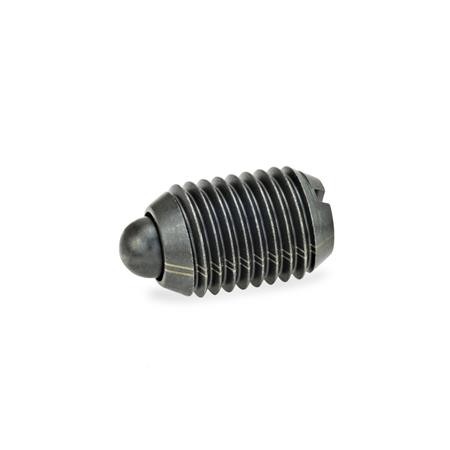

Type BS - Steel, high spring load

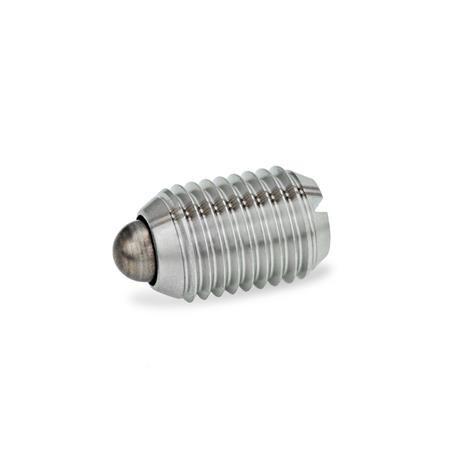

Type BSN - Stainless Steel, high spring load

Product Description

GN615.1 Spring Plungers, with Bolt and Slot, Steel or Stainless Steel

Spring plungers GN 615.1 are used as detents as well as for push-on and push-off applications and ejectors.

Specification

Spring - Stainless Steel NI AISI 631

Type B / BS

Housing - Steel ST, blackened

Bolt - Steel ST, hardened

Type BN / BSN

Housing - Stainless Steel NI AISI 303, 2 longitudinal markings

Bolt - Stainless Steel NI AISI 303, hardened

Type BS / BSN

Housing marked with 2 longitudinal markings
