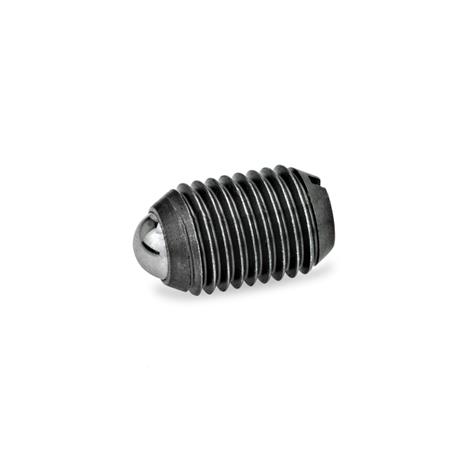

GN615 Spring Plunger, with Slot, Steel or Stainless Steel





Type K - Steel, standard spring load

Type KS - Steel, high spring load

Type KN - Stainless Steel, standard spring load

Type KSN - Stainless Steel, high spring load

Select Values to Buy:

Tech Spec:



GN 615 Spring Plunger, with Slot, Steel or Stainless Steel

These spring plungers are used as detents as well as for push-on and push-off applications and ejectors.

Snap-indexing mechanism applications, together with various control levers, are of particular interest.

Specification

Type K/KS

Steel / Stainless Steel - blackened

Ball - hardened

Type KN/KSN

Housing - Stainless Steel, AISI 303

Ball - Stainless Steel, AISI 420C, hardened

RoHS compliant

Select / Deselect Visible Columns
Close
Hided1 Show
HideTypeShow
Hided2Show
HidelShow
HidewShow
HideSpring load
in N
initial
Show
HideSpring load
in N
end
Show
PartCoded1 Typed2lwSpring load
in N
initial
Spring load
in N
end
Mass

GN615-M3-KM3K1.570.4330
GN615-M3-KNM3KN1.570.4330
GN615-M4-KM4K2.590.8660
GN615-M4-KNM4KN2.590.8660.001
GN615-M5-KM5K3120.9880.001
GN615-M5-KSM5KS3120.98150.001
GN615-M5-KNM5KN3120.9880.001
GN615-M5-KSNM5KSN3120.98150.001
GN615-M6-KM6K3.514111110.002
GN615-M6-KSM6KS3.514111190.002
GN615-M6-KNM6KN3.514111110.002
GN615-M6-KSNM6KSN3.514111190.002
GN615-M8-KM8K4.5161.51.5180.003
GN615-M8-KSM8KS4.5161.51.5360.003
GN615-M8-KNM8KN4.5161.51.5180.004
GN615-M8-KSNM8KSN4.5161.51.5360.004
GN615-M10-KM10K61922240.007
GN615-M10-KSM10KS61922570.007
GN615-M10-KNM10KN61922240.007
GN615-M10-KSNM10KSN61922570.007
GN615-M12-KM12K8222.52.5260.01
GN615-M12-KSM12KS8222.52.5610.01
GN615-M12-KNM12KN8222.52.5260.01
GN615-M12-KSNM12KSN8222.52.5610.01
GN615-M16-KM16K10243.53.5410.02
GN615-M16-KSM16KS10243.53.5680.022
GN615-M16-KNM16KN10243.53.5410.022
GN615-M16-KSNM16KSN10243.53.5680.022
GN615-M20-KM20K12304.54.5560.043
GN615-M20-KSM20KS12304.54.5840.043
GN615-M20-KNM20KN12304.54.5560.043
GN615-M20-KSNM20KSN12304.54.5840.043
GN615-M24-KM24K15345.55.5810.07
GN615-M24-KSM24KS15345.55.51270.07
GN615-M24-KNM24KN15345.55.5810.07
GN615-M24-KSNM24KSN15345.55.51270.07
#77930.84~77932.68#

Also available with internal hexagon GN615.3 or internal hexagon with thread locking GN615.3.
