GN615.3 Spring Plunger, with Thread Locking, Steel or Stainless



Type K - Steel, standard spring load

Type KS - Steel, high spring load

Type KN - Stainless Steel, standard spring load

Type KSN - Stainless Steel, high spring load

Select Values to Buy:

Tech Spec:



GN615.3 Spring Plunger, with Thread Locking, Steel or Stainless Steel

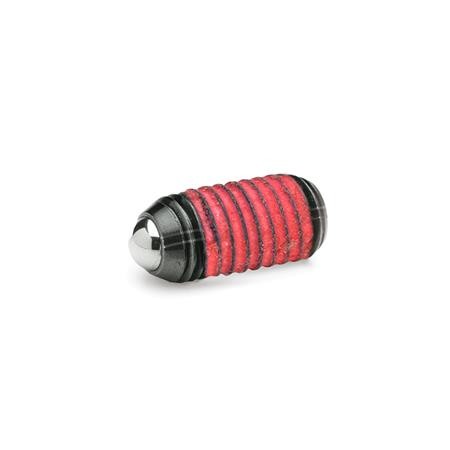

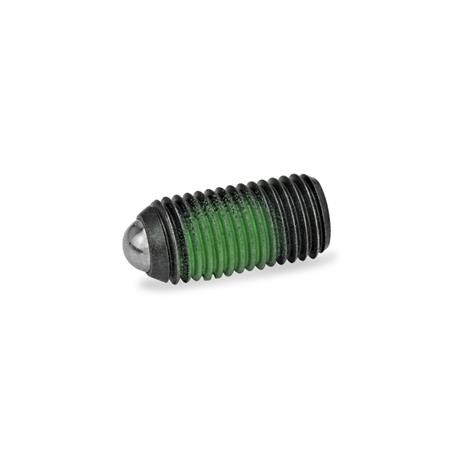

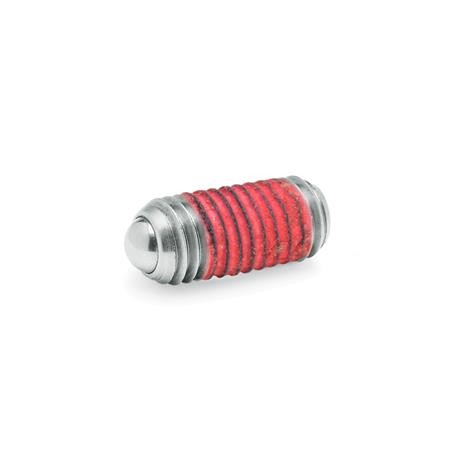

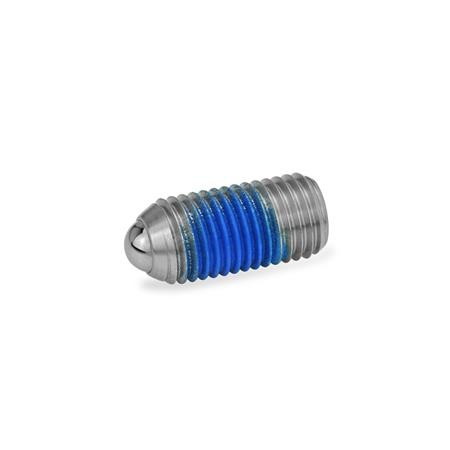

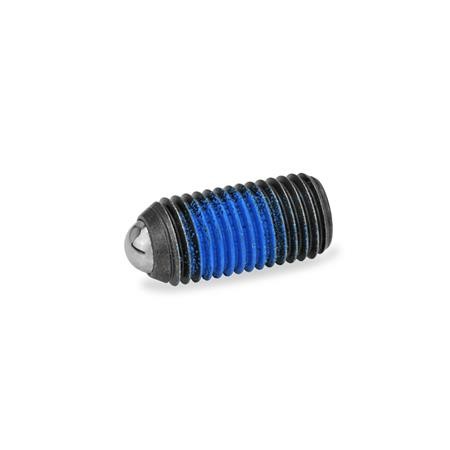

The PFB patch is a jamming thread locking (Polyamide patch). The coating for type K or KN (standard spring load) is indicated blue, for type KS or KSN (high spring load) green. For this type of thread locking a relatively high torque is required. Therefore this version with internal hexagon is more preferable than the version with slot GN615.

Specification

Type K/KS

Steel - blackened

Ball - hardened

Type KN/KSN

Stainless Steel AISI 303/ AISI 420C

Ball - hardened

Marking of the type KS/KSN:

Housing with two longitudinal markings

Thread lockings - Polyamide patch PFB

Type K/KS M3 ... M16

Type K/KS M20, M24 *

Type KN/KSN M3 ... M16

Type KN/KSN M20, M24 *

* usually not availble from stock, requires a minimum order quantity

RoHS compliant

Select / Deselect Visible Columns
Close
Hided1Show
HideTypeShow
HideFinishShow
Hided2Show
HidelShow
HidewShow
HideA/FShow
HideSpring load
in N
initial
Show
HideSpring load
in N
end
Show
HideMaterialShow
PartCoded1TypeFinishd2lwA/FSpring load
in N
initial
Spring load
in N
end
MaterialMass

GN615.3-M3-K-PFBM3KPFB1.580.41.534.5ST0
GN615.3-M3-KN-PFBM3KNPFB1.580.41.534.5NI0
GN615.3-M4-K-PFBM4KPFB2.5120.828.514ST0.001
GN615.3-M4-KN-PFBM4KNPFB2.5120.828.514NI0.001
GN615.3-M5-K-PFBM5KPFB3140.92.5814ST0.001
GN615.3-M5-KS-PFBM5KSPFB3140.92.51522ST0.001
GN615.3-M5-KN-PFBM5KNPFB3140.92.5814NI0.001
GN615.3-M5-KSN-PFBM5KSNPFB3140.92.51522NI0.001
GN615.3-M6-K-PFBM6KPFB3.515131118ST0.002
GN615.3-M6-KS-PFBM6KSPFB3.515131928ST0.002
GN615.3-M6-KN-PFBM6KNPFB3.515131118NI0.002
GN615.3-M6-KSN-PFBM6KSNPFB3.515131928NI0.002
GN615.3-M8-K-PFBM8KPFB4.5181.541831ST0.004
GN615.3-M8-KS-PFBM8KSPFB4.5181.543662ST0.004
GN615.3-M8-KN-PFBM8KNPFB4.5181.541831NI0.004
GN615.3-M8-KSN-PFBM8KSNPFB4.5181.543662NI0.004
GN615.3-M10-K-PFBM10KPFB623252445ST0.008
GN615.3-M10-KS-PFBM10KSPFB6232557104ST0.008
GN615.3-M10-KN-PFBM10KNPFB623252445NI0.008
GN615.3-M10-KSN-PFBM10KSNPFB6232557104NI0.008
GN615.3-M12-K-PFBM12KPFB8262.562649ST0.013
GN615.3-M12-KS-PFBM12KSPFB8262.5661110ST0.013
GN615.3-M12-KN-PFBM12KNPFB8262.562649NI0.013
GN615.3-M12-KSN-PFBM12KSNPFB8262.5661110NI0.013
GN615.3-M16-K-PFBM16KPFB10333.584186ST0.032
GN615.3-M16-KS-PFBM16KSPFB10333.5868142ST0.032
GN615.3-M16-KN-PFBM16KNPFB10333.584186NI0.032
GN615.3-M16-KSN-PFBM16KSNPFB10333.5868142NI0.032
GN615.3-M20-K-PFBM20KPFB12434.51066111ST0.065
GN615.3-M20-KS-PFBM20KSPFB12434.51084166ST0.065
GN615.3-M20-KN-PFBM20KNPFB12434.51066111NI0.066
GN615.3-M20-KSN-PFBM20KSNPFB12434.51084166NI0.06
GN615.3-M24-K-PFBM24KPFB15485.51281151ST0.103
GN615.3-M24-KS-PFBM24KSPFB15485.512127237ST0.105
GN615.3-M24-KN-PFBM24KNPFB15485.51281151NI0.105
GN615.3-M24-KSN-PFBM24KSNPFB15485.512127237NI0.1
#77854.77~77857.27#

Also available without thread locking GN615.3.
