GN615.3 Spring Plunger, with Internal Hexagon

CloseNextPrevious



CloseNextPrevious

GN615.3: Spring Plunger - Type: K -
Steel, Standard Spring Load



CloseNextPrevious

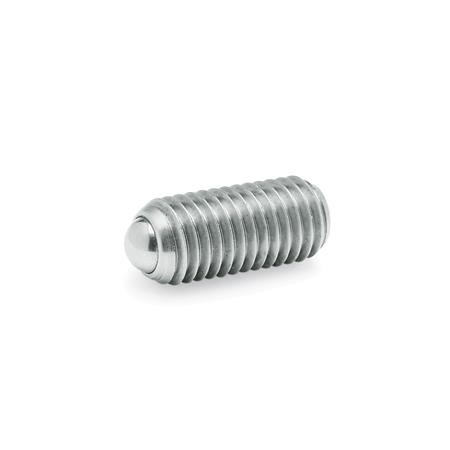

GN615.3: Spring Plunger - Type: KN -
Stainless Steel, Standard Spring Load



CloseNextPrevious

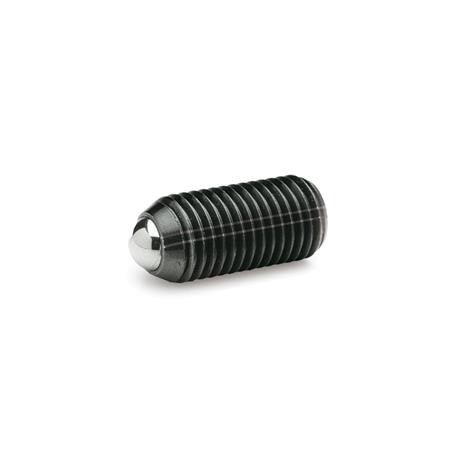

GN615.3: Spring Plunger - Type: KS -
Steel, high spring load



CloseNextPrevious

GN615.3: Spring Plunger - Type: KSN -
Stainless Steel, high spring load



CAD Viewer Technical Data

Series Selector

Options

Type K - Steel, standard spring load

Type KS - Steel, high spring load

Type KN - Stainless Steel, standard spring load

Type KSN - Stainless Steel, high spring load

CAD Viewer Technical Data

Product Description

GN615.3 Spring Plunger, with Internal Hexagon

These spring plungers are used as detents, and for push-on and push-off applications.

The hexagon socket at the bottom end makes them slightly longer than the spring plungers GN615 with slots. In all other aspects they are, however, identical.

Specification

Type K/KS

Housing - Steel ST, blackened

Ball - Steel ST, hardened

Type KN/KSN

Housing - Stainless Steel NI, AISI 303

Ball - Stainless Steel NI, AISI 420C, hardened

Marking of type KS/KSN: Housing with two longitudinal markings

Also available with thread locking GN615.3.
